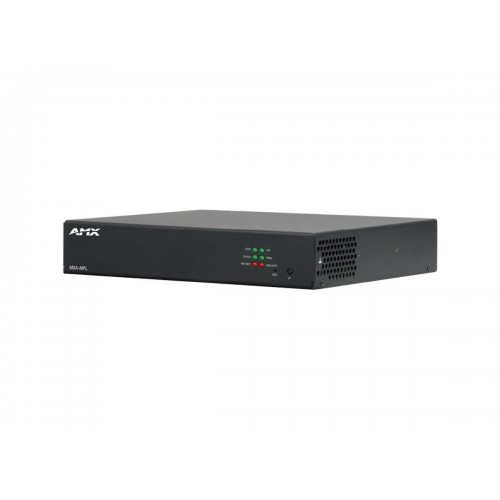

The Modero X Series Multi Preview Live is a touch panel accessory that displays a HD digital video stream on Modero X Series Touch Panels when used in conjunction with an Enova DVX All-In-One Presentation Switcher or Enova DGX Digital Media Switcher. The MXA-MPL accepts analog or digital video inputs over HDMI and converts them to a video stream. The MXP-MPL also supports all of the features of the MXA-MP, displaying up to 10 JPEG preview images on a Modero X Series. The MXA-MPL makes it easy for users to quickly identify what is currently being displayed by up to 10 source devices.
FGP44-4848-360
Octaire Fixed Matrix Switchers
Search AMX LLC in
Hubs / Switches
FG5968-10
MXA-MPL Modero X Series Multi
Search AMX LLC in
Combined AV Devices
FG1058-600
AVS-ENOVADGX32-VI-DVI
Search AMX LLC in
Input Adapters
FG1311-16-KW
AMX SP-16-AX-TR-UK 16-Button Keypad
Search AMX LLC in
Keyboards / Keypads
FG5968-21
AMX 19.4 Modero X Panaramic
Search AMX LLC in
Terminals / Network Computers
FG6968-10
MXA-MPL Modero X Series Multi
Search AMX LLC in
Network Devices
FG2606-868
NetLinx Clear Connect Gateway
Search AMX LLC in
Network Devices
FG5795-01BG
MIO-CLASSIC-S Mio Modero Keypad
Search AMX LLC in
Keyboards / Keypads
FG1058-570
AVS-ENOVADGX32-VI-DXLINK Enova
Search AMX LLC in
Network Adapters
FG2116-07
NXA-CF2NI CompactFlash Upgrade
Search AMX LLC in
Computer Accessories
-
Primary Information
Features: DVI-I: DVI-I multi-format video input; HDMI: HDMI preview video output; Analog Audio Jack: 1/8th-inch mini-jack input; Phoenix-Style Connector: 2-pin 3.5 mm Phoenix-style connector output, 12 Volts, 3 Amps; Ethernet: (2) 10/100 port, RJ-45 connectors. -
Dimensions&Miscellaneous
Width: 1.57 Inch Depth: 8.26 Inch Height: 7.16 Inch -
Special Feature
COO: MEXICO -
UNSPSC Code
UNSPSC Code: 45111800
