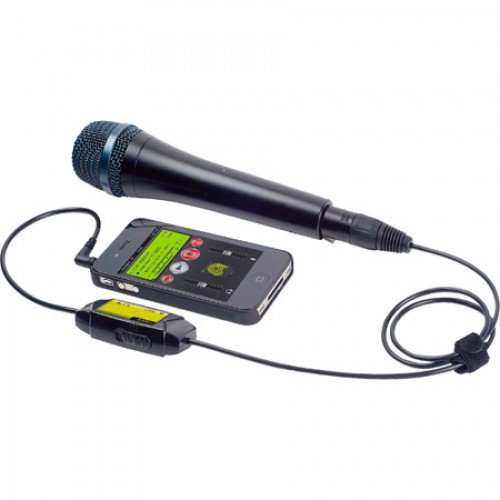

Digigram Q-Mic Mic Preamp for Smartphones & Tablets

A superior professional Mic preamp for smartphones and tablets
Practical, affordable and reliable, Q-Mic is the perfect companion for professional field reporters.
Housed in a light and ultra-ruggedized casing with professional connectors, it provides the low noise and high gain (until + 24 dB) demanded by professional dynamic microphones. Its extremely low power consumption (500 µA) enables long recording sessions and uninterrupted On Air interviews.

Features:

• Selectable Gain +24 dB, +7 dB and -11 dB on balanced XLR input
• Headphone monitoring output - 3.5 mm jack
• Line input with Stereo-to-mono conversion - 3.5 mm jack
• Ultra-light (less than 75g) and ruggedized casted casing, built exclusively with professional components
• Large adjustable gain (until +24 dB) to provide on smartphones input the high quality boost requested by professional dynamic microphones
• No battery: the extremely low power consumption (500 µA) is provided by microphone polarization voltage.
• Balanced XLR microphone input
• Stereo-to-Mono Line input
• Headphone monitoring from smartphone headphone output
• Compatible with smartphones and tablets using CTIA handset plug, particularly Apple iPhones 4,4S and 5

Specifications:

• Material Ruggedized cast ABS casing
• Size Casing : 70 mm x 30 mm x 18 mm
• Weight Less than 75 g (complete with cables and XLR connector)
• Connectors Neutrik connectors (Mic) CTIA compatible 4-wires Handset connector
• Label Factory customizable through Private Labeling Program
• Power consumption Typical : 500 µA, from smartphone Mic polarization voltage


• Inputs:
• Microphone input Balanced XLR, 3 positions switch : +24 dB, +7 dB, -11 dB gains
• Line input : 3.5 mm Stereo mini-jack, performs Stereo-to-Mono conversion


• Outputs:
• To smartphone: Nominal level -36 dBu, compatible with recommended iPhone nominal level
• To headphone: 3.5 mm Stereo mini-jack, monitoring stereo smartphone output
