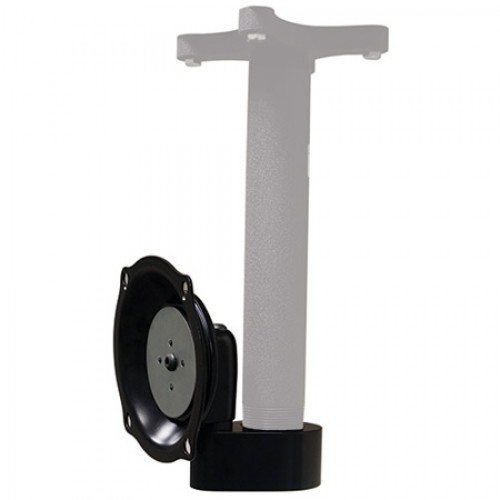

Chief JHS210B Medium Flat Panel Ceiling Mount
- Brands Chief Mounts
- Product Code:CHF-JHS210B
- Availability:In Stock
-
$180.00
A single-screen ceiling mount for flat panel TVs that combines Chief's exclusive Centris tilt with quick ceiling mount installation.
Ceiling plate and extension column (Adjustable and Fixed) are required and must be ordered separately to fit your specific installation requirements
Features:
- Exclusive Centris Technology fingertip tilt self-adjusts to securely hold different display weights
- Screen angle stays set in place until you decide to re-adjust
- Post-installation leveling with no tools necesary
- Fast and easy screen positioning with lockdown capability
- Portrait and landscape mounting capability
- Easily route cables through 1.5" NPT extension column
- Set screw security
- Universal models available for VESAr 100 x 100 mm up to 400 x 400 mm mounting patterns
- MSB interface bracket can be purchased separately for non-VESA compatible screens
Specifications:
- Color: Black
- Mounting Pattern Compatibility (Universal Versions): 100 x 100mm, 200 x 100mm, 200 x 200mm
- Orientation: Landscape, Portrait
- Overall Dimensions (H x W x D): 6.0" x 6.6" x 5.1" (152 x 167 x 128mm)
- Pivot (numerical value): Yes
- Post-Installation Leveling (Roll): Yes
- Shipping Weight: 7.00 lbs
- Solution Type: Universal
- Tilt: + 15° , - 15°
- Typical Screen Sizes: 26 - 45"
- Weight Capacity: 75 lbs (34.kg)
