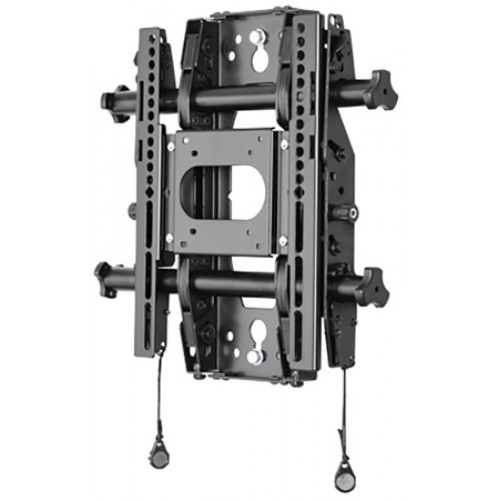

Chief STMS1U Fusion 300 mm Tilt Wall TV Mount
- Brands Chief Mounts
- Product Code:CHF-STMS1U
- Availability:In Stock
-
$190.00
The installer-inspired STMS1U Fusion tilt mount solves top flat panel installation problems, offering flexible adjustments for small displays with a low-profile display mounting solution.
This single stud Fusion mount hides better behind narrow bezel displays in the 24-32" range. Many installer-friendly features of Fusion in a smaller form to create superior aesthetic results.
The mount incorporates Fusion favorites like Centris tilt, ControlZone leveling adjustment and ClickConnect Latching.
Features:
- Centris low-profile tilt uses the center of gravity to balance the screen while maintaining a low profile
- Tilt can be locked at 0°, -6° or -12°
- ControlZone leveling allows post-installation fine-tuning of height and leveling
- ClickConnect offers an audible click when the display safely engages with the mount
- Post-installation lateral positioning
- Set screws keep the mount rigid, stable and secure throughout the life of the installation
- Exclusive nesting spacers can be stacked to achieve any depth
- Quick-Store Cords use magnets to easily store and access pull cords
- Integrated Security
- Ships with a custom hardware kit that can be hung from mount rails if installing in stages
- Easy Open box with less waste to throw away
Specifications:
- Certifications: UL Listed
- Color: Black
- Manual Height Adjustment: 1"
- Minimum Depth: 2"
- Mounting Pattern Compatibility (Universal Versions): 75 x 75 - 300 x 300 mm
- Number Of Monitors: 1
- Orientation: Landscape and Portrait
- Overall Dimensions (H x W x D): 14.14 x 14.25 x 2"
- Solution Type: Universal
- Tilt: +2°, -12°
- Typical Screen Sizes: 24-32"
- Weight Capacity: 75 lbs
