Chief TPS2000B Large Fixed Truss & Pole Mount (without interface)
- Brands Chief Mounts
- Product Code:CHF-TPS2000B
- Availability:In Stock
-
$250.00

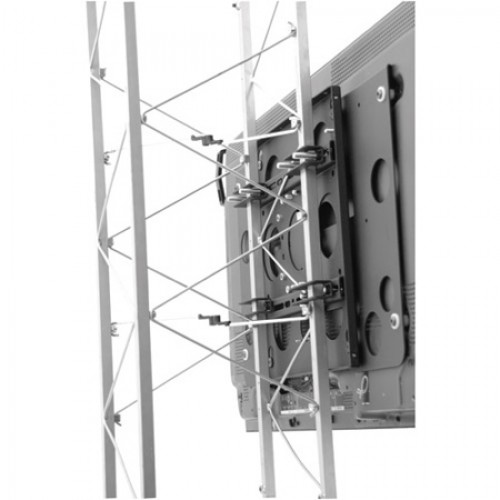

Quick, easy and versatile, the Truss/Pole Static Mounts, Pole Tilt-Adjustable Mounts and Truss Tilt-Adjustable Mounts are often used for mounting the large flat panel displays used in exhibit, retail and digital signage.
Clamps for different size poles and truss work are required and must be ordered separately
Features:
- Install on vertical or horizontal truss
- Attach displays in portrait or landscape orientation
- TPS/TPP span most truss systems up to 14 (OD)
- Truss/Pole clamps fit a wide variety of truss and pole dimensions
- Exclusive Q-Latch Mounting System secures the Large Flat Panel Display with a lockable latch
- Screen can be installed in portrait or landscape orientation ( PAC400 or MAC400 accessory can be used to rotate without removing the screen)
- Integrated security allows display to be locked to mount by adding a padlock
- Compatible with TPK clamp accessories.
Specifications:
- Certifications: UL Listed
- Color: Black
- Minimum Depth: 1.08 (27.4mm)
- Mounting Pattern Compatibility (Universal Versions): 200 x 200mm - 862 x 517mm
- Orientation: Landscape, Portrait
- Overall Dimensions (H x W x D): 16.2 x 17.1 x 1.1 (412 x 433 x 27mm)
- Post-Installation Leveling (Roll): Yes
- Typical Screen Sizes: 42 - 71
- Weight Capacity: 150 lbs (68.kg)
