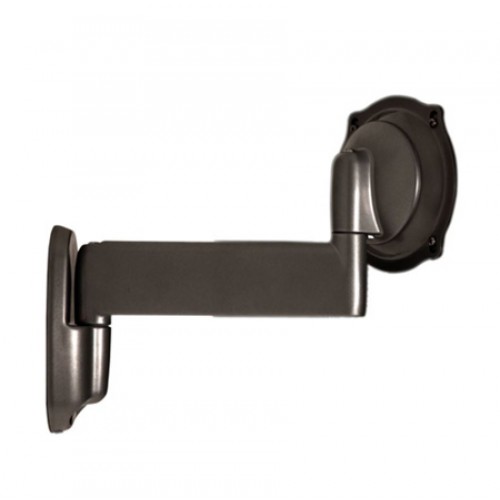

Chief JWSVB Medium Flat Panel Single Arm Wall Display Mount 12 Inch Extension
- Brands Chief Mounts
- Product Code:CHF-JWSVB
- Availability:In Stock
-
$250.00
Chief's JWSVB is a single arm wall display mount that provides a broad range of motion for viewing medium flat panel displays and monitors from multiple angles. It is an ergonomic solution for the home or office providing excellent adjustability and it folds in close to the wall for a low-profile appearance.
Please use the Mount finder below to determine if this is the correct mount for your monitor.
Features:
- Centris Fingertip Tilt provides smooth tilt adjustment in all directions
- Gravity-centered tilt self-adjusts to securely hold different display weights
- Teardrop hole pattern makes mounting the screen quick and easy
- Portrait and landscape screen installation.
- Smooth extension to achieve ideal viewing angle
- Independently adjustable tension at pivot points for customized control
- Quick, easy cable management
- Sleek, attractive design hides all hardware
- Ships assembled
- Universal models available for VESA 100 x 100 mm up to 400 x 400mm mounting patterns
- MSB interface bracket can be purchased separately for non-VESA compatible screens
Specifications:
- Color: Black
- Maximum Extension: 11.9"
- Minimum Depth: 3.2"
- Mounting Pattern Compatibility (Universal Versions):100 x 100mm, 200 x 200mm, 400 x 200mm
- Notes: Depth and Extension do not include interface bracket (may add 0" - 0.5" of depth)
- Orientation: landscape and portrait
- Overall Dimensions (HxWxD): 11.5" x 13.1" x 3.4"
- Post-Installation Leveling Roll: Yes
- Shipping Weight: 16 lbs
- Solution Type: Universal
- Tilt: +15° / - 15°
- Typical Screen Sizes: 26 - 45"
- Wall Stud Compatibility: Single Stud
- Weight Capacity: 75 lbs
