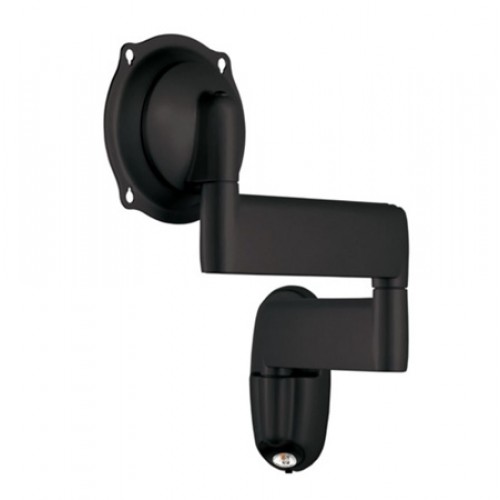

Chief JWDIWVB Medium Low-Profile In-Wall Swing Arm Mount 21 Inches
- Brands Chief Mounts
- Product Code:CHF-JWDIWVB
- Availability:In Stock
-
$318.00
Chief's JWDIWVB is a low-profile mount that is designed to be hidden in the wall.
Please Note:Must order CHF-MAC501B In-Wall Accessory!
Please use the Mount finder below to determine if this is the correct mount for your monitor.
Features:
- Low profile, designed to ensure that the mount remains concealed behind the screen
- Centris Technology provides smooth, fintertip tilt in all directions
- Used with the MAC501B installed in between 16" on center studs.
- No header or footer necessary
- Smooth extension up to 21" (538 mm) to achieve ideal viewing angle
- Back of TV sits close to the wall (0.1" for VESA 100 x 100mm screens and 0.65" for screens having up to 400 x 400mm patterns)
- VESA Compatibility: JWDIW210: up to 200 x 200mm, JWDIWU: up to 400 x 400mm
Specifications:
- Color: Black
- Maximum Extension: 17"
- Minimum Depth: 0.1"
- Mounting Pattern Compatibility (Universal Versions): 100 x 100mm, 200 x 100mm, 200 x 200mm, 400 x 200mm
- Notes: Require MAC501B. Depth and Extension do no include interface bracket (adds 0.5 - 1.5")
- Orientation: landscape and portrait
- Post-Installation Leveling Roll: Yes
- Shipping Weight: 16.15 lbs
- Solution Type: Universal
- Tilt: +15° / - 15°
- Typical Screen Sizes: 26 - 45"
- Wall Stud Compatibility: 16"
- Weight Capacity: 75 lbs
