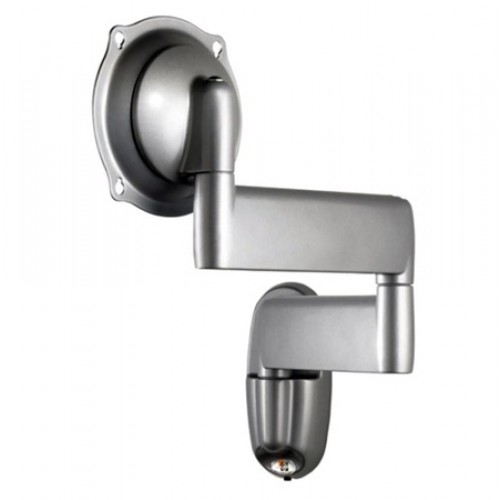

Chief JWD210S Medium Flat Panel Swing Arm Wall Display Mount - 20 Inch Extension
- Brands Chief Mounts
- Product Code:CHF-JWD210S
- Availability:In Stock
-
$318.00
The JWD210S provides a broad range of motion for viewing medium flat panel displays and monitors from multiple angles. Standard solutions are for single wood stud installations. Additional versions available for 16" on center wood / metal studs and in-wall applications.
Features:
- Centris Fingertip Tilt provides smooth tilt adjustment in all directions
- Gravity-centered tilt self-adjusts to securely hold different display weights
- Teardrop hole pattern makes mounting the screen quick and easy
- Portrait and landscape screen installation
- Smooth extension to achieve ideal viewing angle
- Independently adjustable tension at pivot points for customized control
- Folds in close to the wall for a low-profile appearance.
- Quick, easy cable management
- Sleek, attractive design hides all hardware
- Ships assembled
- Single stud wall mounting
- Universal models available for VESA 100 x 100 mm up to 400 x 400mm mounting patterns
- MSB interface bracket can be purchased separately for non-VESA compatible screens
Specifications:
- Color: Silver
- Maximum Extension: 20.4"
- Minimum Depth: 2.7"
- Mounting Pattern Compatibility (Universal Versions): 100 x 100mm, 200 x 100mm, 200 x 200mm
- Notes: Depth and Extension do not include interface bracket (may add 0" - 0.5" of depth)
- Orientation: landscape
- Overall Dimensions (HxWxD): 14.7" x 12.1" x 2.7"
- Post-Installation Leveling Roll: Yes
- Shipping Weight: 15 lbs
- Solution Type: Universal
- Tilt: +15° , - 15°
- Typical Screen Sizes: 26 - 45"
- Wall Stud Compatibility In: Single Stud
- Weight Capacity: 75 lbs
