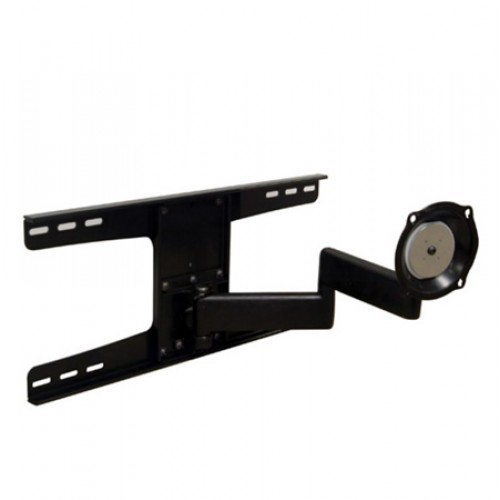

Chief JWDSKVB Medium Flat Panel Swing Arm Wall Mount (Metal Studs)-20 Inch-Black
- Brands Chief Mounts
- Product Code:CHF-JWDSKVB
- Availability:In Stock
-
$459.00
Use Chief's JWDSKVB to easily install a Chief dual swing arm wall mount to 16" 20" or 24" on-center steel studs.
Please use the Mount finder below to determine if this is the correct mount for your monitor.
Features:
- Mounts a dual swing arm to 16" 20" or 24" on-center steel studs
- Centris Technology provides smooth, fingertip tilt in any direction
- Smooth extension over 20" (517 mm) to achieve the ideal viewing angle
- Folds in close to the wall for a low-profile appearance
- Quick, easy cable management
- All mounting hardware included
- VESA 100 x 100 mm, 200 x 100 mm and 200 x 200 mm compatible (interface brackets available for non-VESA compliant displays)
Specifications:
- Color: Black
- Maximum Extension: 20.4"
- Minimum Depth: 3.4"
- Mounting Pattern Compatibility (Universal Versions): 100 x 100mm, 200 x 100mm, 200 x 200mm, 400 x 200mm
- Notes: Depth and Extension do not include interface bracket (may add 0" - 0.5" of depth)
- Orientation: landscape
- Overall Dimensions (HxWxD): 13.0" x 26.0" x 3.4"
- Post-Installation Leveling Roll: Yes
- Shipping Weight: 28 lbs
- Solution Type: Universal
- Tilt: +15° / - 15°
- Typical Screen Sizes: 26 - 45"
- Wall Stud Compatibility: Metal Studs, LCM3X3U, 24
- Weight Capacity: 75 lbs
