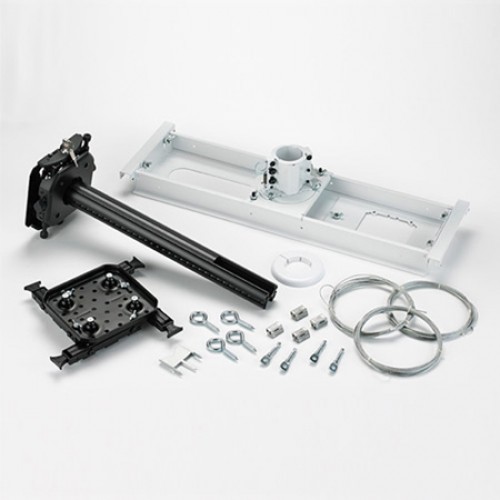

Chief SYSAUB Suspended Ceiling Projector System - Black
- Brands Chief Mounts
- Product Code:CHF-SYSAUB
- Availability:In Stock
-
$487.00
Designed for speed and flexibility from an ordering and installation standpoint. Chief's SYSAUB Suspended Ceiling Projector System cuts installation time by one-third and includes everything needed to complete the majority of installations.
Features:
- System comes out of box in the order needed with mount and column preassembled
- Adjustable ceiling plate allows placement above or below tile and accommodates inconsistent T-grids
- Compatible with 2' x 2', 2' x 4', 60 x 60cm, & 62.5 x 62.5cm ceiling grids
- Detachable electric plate for pre-wiring
- Compatible with popular 2 gang adjustable mud rings
- Tool-Free Microzone adjustment eliminates the need for set screws
- Centris technology enables effortless fingertip positioning with new tool-free lockdown
- Adjustable 0-12" column with dual inlay channels for high and low voltage cables
- Q-Lock Quick Release Lever provides quick connect/disconnect of the projector for service and enhanced security with an integrated key and lock system
- Improved universal interface for easier lock/unlock at projector connection
Specifications:
- Adjustments: Roll, Pitch, Yaw (3°, 10°, 360°)
- Certifications: UL Listed
- Color: Black
- Extension: 0 - 12" ( 0 - 304.8 mm)
- Overall Dimensions (H x W x D): 19.82" x 7.25" x 24.94" (503.5 x 184.2 x 633.6 mm)
- Shipping Weight: 19.60 lbs (8.89 kg)
- Solution Type: Universal
- Weight Capacity: 35 lbs (15.9 kg)
