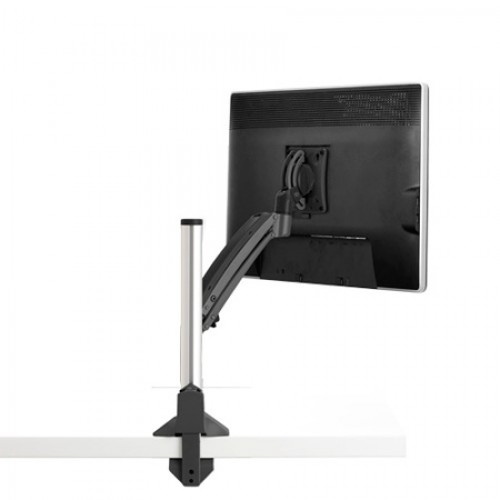

Chief K1C110B KONTOUR Dynamic Column Desk Clamp Single Monitor Mount - Black

The enhanced Kontour K1C Dynamic Height-Adjustable Column Mounts are the perfect solutions for the office, healthcare facilities or home. Provide the maximum amount of both dynamic and manual height adjustment for the ultimate ergonomic solution.

Key enhancements have been made to Chief's patented Centris Extreme Tilt technology for effortless fingertip monitor positioning. Kontour monitor mounts float your displays in the optimal ergonomic position above your work surface to create a more productive and comfortable work environment.

Note: When ordering this product with a non VESA compatible product, you may also need to order one FSB4100B per K1C110B.

Features:

• Sleek, solidly-constructed forged aluminum arms in subtle silver & black finishes
• Enhanced patented Centris Extreme Tilt provides +75°, -10° of effortless tilt, for optimal viewing comfort whether sitting or standing
• Enhanced column interface enables easy upgrades from single- to dual- or triple-monitor installations without impacting the existing installation, future-proofing your investment
• 20" (508 mm) of total height adjustment range
• 13" (330 mm) of dynamic height adjustment using smooth motion gas-spring technology
• Additional 7" (178 mm) of manual height adjustment on the column
• Enhanced 3-step installation and quick-release monitor interface for easy mounting and maintenance, with included tool storage in the updated base
• Easily clamps to edge of desk, through standard grommet hole, or through bolt hole with included kit
• Tool-free cable management covers for a clean, professional look
• With high levels of recycled content & a highly-recyclable design, Chief KontourT monitor arms may contribute to valuable LEED-CI, -NC, and -EB credits!
• Kontour K1 products are all TAA-compliant

Specifications:

• Color: Black
• Desktop Thickness Range: 0.50 - 2.50" (12.7 - 63.5 mm)
• Dynamic Height Adjustment: 13" (330.2 mm)
• Manual Height Adjustment: 7.0" (177.8 mm)
• Maximum Extension: 15.7" (399 mm)
• Minimum Depth: 2.45" (62 mm)
• Mounting Pattern Compatibility (Universal Versions): 75 x 75mm ,100 x 100mm
• Notes: TAA Compliant
• Number of Monitors: 1
• Orientation: Landscape, Portrait
• Shipping Weight: 11.00 lbs
• Tilt: +75 Degrees, -10 Degrees
• Typical Screen Sizes: 10 - 30" (254 - 762 mm) diagonals
• Weight Capacity: 5 - 22 lbs. (2.3 - 9.9 kg)
