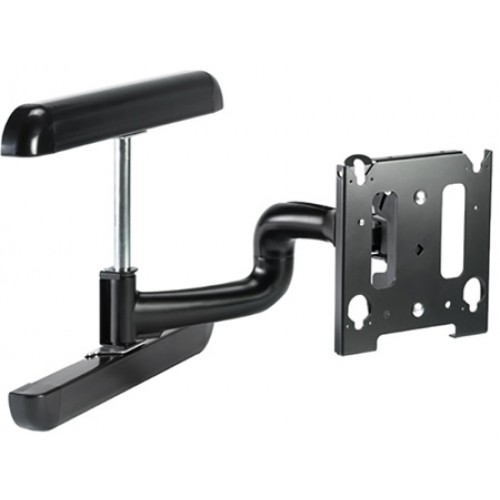

Chief MWRUB Mid Size Swing Arm TV Mount
- Brands Chief Mounts
- Product Code:CHF-MWRUB
- Availability:In Stock
-
$603.00
The MWRUB is a medium flat panel swing arm wall display mount - 25" extension which provides extended viewing angles for flat panel displays. Standard display mounts are for 16" on center wood stud walls. Additional versions available for metal studs and in-wall applications.
Features:
- Provides full extension while remaining low profile in the home position
- Centris Technolgoy provides fingertip tilt adjustments
- CableTrac System provides a fast and effective way to route cables
- Swivel up to 90° left or right (depending upon screen size)
- Integrated lateral shift 6" left and right (ships shifted 2.5" to the left)
- Mounting guides provided for a hassle-free installation
- Q-Latch Mounting System secures flat panel to mount with a latching flag
- Screen can be installed in portrait or landscape orientation (MAC400 accessory can be used to rotate without removing the screen)
Specifications:
- Color: Black
- Lateral Shift: 12"
- Maximum Extension: 25"
- Minimum Depth: 3.38" - does not include interface bracket (adds 0.5 - 1.5")
- Mounting Pattern Compatibility (Universal Versions): 100 x 100mm - 709 x 431mm
- Orientation: landscape and portrait
- Overall Dimensions (H x W x D): 18.0" x 23.6" x 3.4"
- Post-Installation Leveling Roll: Yes
- Shipping Weight: 45 lbs
- Solution Type: Universal
- Tilt: + 5° , - 15°
- Typical Screen Sizes: 30 - 55"
- Wall Stud Compatibility In: 16"
- Weight Capacity: 125 lbs
