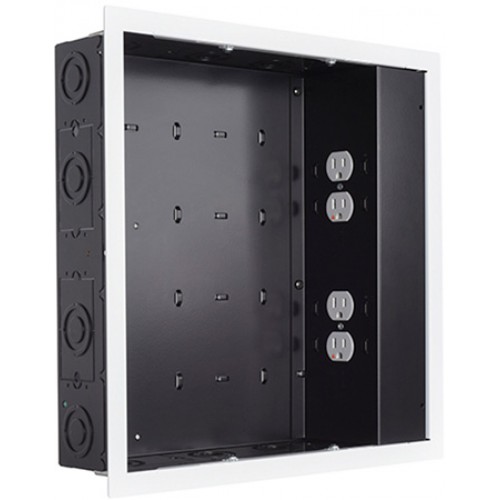

Chief PAC526FWP4 In-Wall Storage Box with 4 Receptacle Filter & Surge

The PAC526FWP4 The PAC526FWP4 simplifies flat panel installation by providing an organized, recessed space for routing excess cables. The addition of the flange adds an aesthetic trimmed appearance and drywall mounting capability.

Includes a high-performance, dual gang housing, isolated ground, 4-receptacle outlet featuring the SurgeX® non-sacrificial multi-stage filtration and surge protection system. This protects equipment from disruptive high frequency noise and damage caused by power disturbances.

Chief's powered solutions were co-developed with SurgeX, a brand of AMETEK® Electronic Systems Protection.

Compatible with the PST, PRO, PLP, MSR, MTR, MWH, MWR, PWR, PNR, PDR, Thinstall, and FUSION wall mounts.

Features:

• Pre and post construction installation options
• Drywall and stud mountable
• Knockouts for single gang outlets and 1-1/4" - 1" - 0.5" conduit
• Integrated universal zip tie anchor points
• Landscape/Portrait installation
• Stores a large variety of AV components
• Paintable flange to blend in any environment
• Black & white color options
• Enclosure UL 2416 Listed for installation of AV, IT & Communication Technology Equipment
• Surge and Filter Module
• Non-volatile spike protection with LED power indicator
• Non-sacrificial multi-stage technology
• Non-current limiting design passes full power on a regular circuit; redundant protection circuits
• Improves the reliability and functionality of connected equipment by safeguarding equipment from high energy transients, lightning strikes and electronic noise events that can cause gear degradation and downtime
• Line filter reduces common and differential mode noise by up to 40 dB
• Rated for 125V~, 60Hz, 15 A
• 1875 watt maximum
• Ferrite toroid based EMI Filter
• Withstand rating of 240 VAC continuous without damage or loss of protection

Specifications:

• Certifications: UL Listed
• Color: White
• NotesOutput: 15A, 1875 W continuous
• Overall Dimensions (H x W x D): 15.51 x 15.4 x 3.88” (394 x 391 x 98 mm)
• Power RequirementsPower Consumption:
• Type 3 Surge Protective Device: (SPD)
• Voltage Protection Rating (VPR): 600V L-N, N-G; 800V L-G
• Maximum Continuous Operating Voltage (MCOV): 240V
• Nominal Discharge Current (In): 3kA
• Short Circuit Current Rating (SCCR): 5kA
• Ambient Temperature Max: 40 degrees C
• Weight Capacity: 10 lbs
