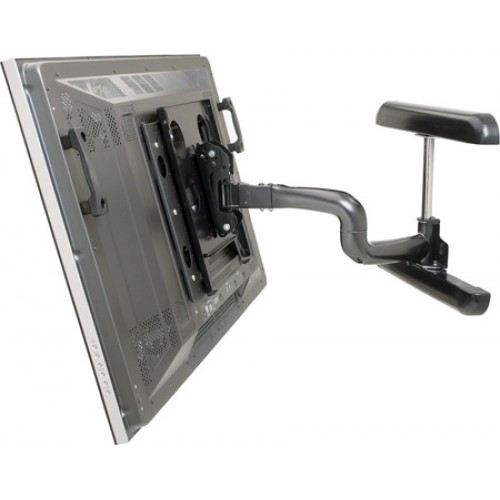

Chief PWRUB Large Flat Panel Swing Arm Wall Mount - 25 Inch Extension
- Brands Chief Mounts
- Product Code:CHF-PWRUB
- Availability:In Stock
-
$625.00
Allows for viewing flexibility when installing a flat panel TV or monitor. A great choice for corporate and home entertainment applications. Standard solutions are for 16" on center wood stud walls. Additional versions available for metal studs and in-wall applications.
Features:
- Extends 24.88" from wall and remains low profile in the home position
- Q-Latch Mounting System secures flat panel to mount with a latching flag
- Integrated lateral shift 6" left and right (ships shifted 2.5" to the left)
- Centris Technology provides fingertip tilt adjustments
- Mounting guides provided for a hassle-free installation
- Provides positive latch in home position to keep screen tight to wall
- CableTrac System provides a fast and effective way to route cables
- UL listed for proven strength
- Swivel up to 90° left or right (depending upon screen size)
- Screen can be installed in portrait or landscape orientation (PAC400 accessory can be used to rotate without removing the screen)
Specifications:
- Certifications: UL Listed
- Color: Black
- Lateral Shift: 12" (304.8mm)
- Maximum Extension: 24.88" (632.mm)
- Minimum Depth: 3.38" (85.9mm)
- Mounting Pattern Compatibility (Universal Versions): 200 x 200mm - 862 x 517mm
- Notes: Depth and Extension do not include interface bracket (adds 0.5 - 1.5")
- Orientation: Landscape, Portrait
- Overall Dimensions (H x W x D): 18.0" x 23.6" x 3.4" (457 x 600 x 86mm)
- Post-Installation Leveling (Roll): Yes
- Solution Type: Universal
- Tilt: + 5° , - 15°
- Typical Screen Sizes: 37 - 55"
- Wall Stud Compatibility (inches): 16
- Weight Capacity: 125 lbs (56.7kg)
