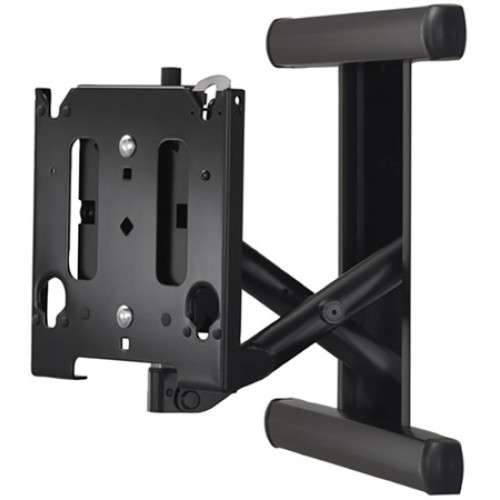

Chief MIWRF6000B Medium Low-Profile In-Wall Swing Arm Mount - 10 Inch
- Brands Chief Mounts
- Product Code:CHF-MIWRF6000B
- Availability:In Stock
-
$625.00
The MIWRF6000B medium low-profile in-wall swing arm mount brings in-wall swing arm technology to the next level, creating a low profile installation for any flat panel display.
Features:
- Provides limitless centering of the flat panel on the wall between 16" center studs without cutting studs - no header/footer necessary
- Low-profile design hides the mount behind the display
- Centris Technology provides smooth, fingertip tilt
- Provides post-installation height adjustment
- ClickConnect Technology provides an audible click to confirm that the flat panel is locked in place
- Screen can be installed in portrait or landscape orientation ( MAC400 accessory can be used to rotate without removing the screen)
- Integrated cable management
- Ships as complete in-wall swing arm - zero assembly required
- Get perfect TV centering without cutting studs
- Ultra low-profile mounting solution
Specifications:
- Color: Black
- Lateral Shift: 5" (127.mm)
- Manual Height Adjustment: 1" (25 mm)
- Maximum Extension: 10" (254 mm)
- Minimum Depth: 1.7" (43.2 mm)
- Mounting Pattern Compatibility (Universal Versions): 100 x 100mm - 709 x 431mm
- Notes: Depth and Extension do not include interface bracket (adds 0.5 - 1.5")
- Orientation: landscape and portrait
- Pivot Numerical Value+/- 37.5° (depending on screen width)
- Post-Installation Leveling Roll: Yes
- Shipping Weight: 40.7 lbs (18.46 kg)
- Solution Type: Universal
- Tilt+ 2° , - 15°
- Typical Screen Sizes: 30 - 55"
- Wall Stud Compatibility In: 16"
- Weight Capacity: 125 lbs
