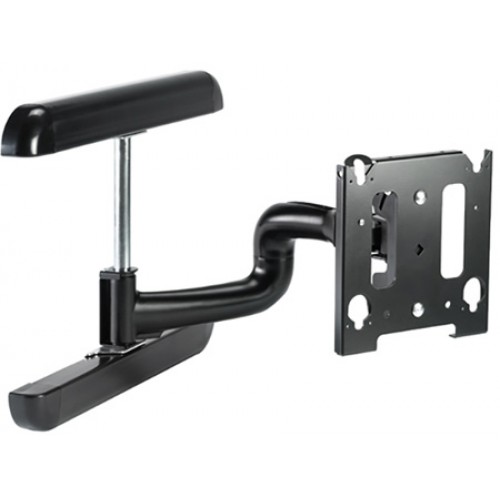

Chief MWRUB-G Medium Flat Panel Swing Arm Wall Display Mount-25 Inch Extension
- Brands Chief Mounts
- Product Code:CHF-MWRUB-G
- Availability:In Stock
-
$656.00
The MWRUB-G is a medium flat panel swing arm wall display mount. This unit provides extended viewing angles for flat panel displays. Standard display mounts are for 16" on center wood stud walls. Additional versions available for metal studs and in-wall applications.
Features:
- Provides full extension while remaining low profile in the home position
- Centris Technology provides fingertip tilt adjustments
- CableTrac System provides a fast and effective way to route cables
- Swivel up to 90° left or right (depending upon screen size)
- Integrated lateral shift 6" left and right (ships shifted 2.5" to the left)
- Mounting guides provided for a hassle-free installation
- Q-Latch Mounting System secures flat panel to mount with a latching flag
- Screen can be installed in portrait or landscape orientation (MAC400 accessory can be used to rotate without removing the screen)
- MWRUB-G is TAA-Compliant, to meet the needs of U.S. Government projects
Specifications:
- Certifications: TAA Compliant
- Color: Black
- Lateral Shift: 12" (304.8mm)
- Maximum Extension: 25" (635 mm)
- Minimum Depth: 3.38" (85.9mm), does not include interface bracket (adds 0.5 - 1.5")
- Mounting Pattern Compatibility (Universal Versions): 100 x 100mm - 709 x 431mm
- Notes: Depth and Extension do not include interface bracket (adds 0.5 - 1.5")
- Orientation: landscape and portrait
- Overall Dimensions (H x W x D): 18.0" x 23.6" x 3.4" (457 x 600 x 86mm)
- Post-Installation Leveling Roll: Yes
- Solution Type: Universal, Custom
- Tilt: + 5°, - 15°
- Typical Screen Sizes: 30 - 55"
- Wall Stud Compatibility In: 16" (406 mm)
- Weight Capacity: 125 lbs (56.7 kg)
