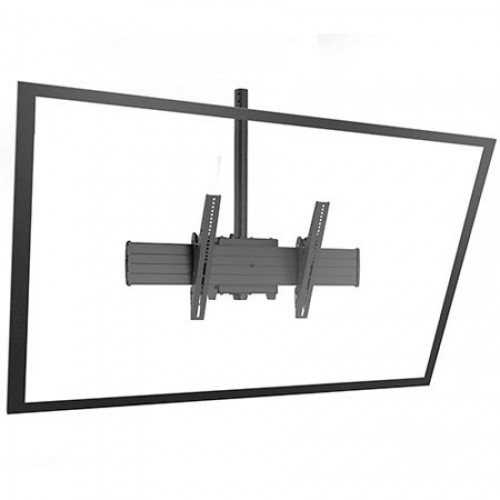

Chief XCM1U FUSION X-Large Single Pole Flat Panel Ceiling Mount
- Brands Chief Mounts
- Product Code:CHF-XCM1U
- Availability:In Stock
-
$681.00
Chiefs FUSION Flat Panel Ceiling Mounts are installer inspired and offer perfect TV positioning and flexible adjustments for X-large flat panel screens. Great for digital signage installations.
The XCM1U is a single pole drop ceiling mount perfect for XL displays 5" deep and thinner. For deeper and heavier displays, see Chief's XCM7000 for a dual drop solution.
Ceiling Plate and extension column are required and must be ordered separately
Compatible with traditional 1.5" NPT and new CPA pinned ceiling plates and column systems
See ceiling plates and extension columns (Adjustable and Fixed) for 1.5" NPT compatibility
See CPA ceiling plates and CPA columns for pin connection compatibility
Features:
- REPEATABILITY Continuous tilt ranges with four set locking points to eliminate guess work when adjusting multiple screens.
- ACCESSIBILITY Simple on/off connection for ease of installation and service.
- CENTRIS FINGERTIP TILT Effortlessly adjust display using Centris fingertip tilt technology.
- SIMPLE & SECURE Tool free screen engagement with optional padlock security.
- FLEXIBILITY Mount swivels to any preferred viewing angle.
Specifications:
- Certifications: UL Listed
- Color: Black
- Mounting Pattern Compatibility (Universal Versions): 200 x 100 mm - 800 x 400 mm
- Overall Dimensions (H x W x D): 16.8" x 34.8" x 7.9" (423 x 885 x 200mm)
- Post-Installation Leveling (Roll): Yes
- Tilt: + 5° , - 20°
- Typical Screen Sizes: 60 - 90"
- Weight Capacity: 250 lbs (113 kg)
