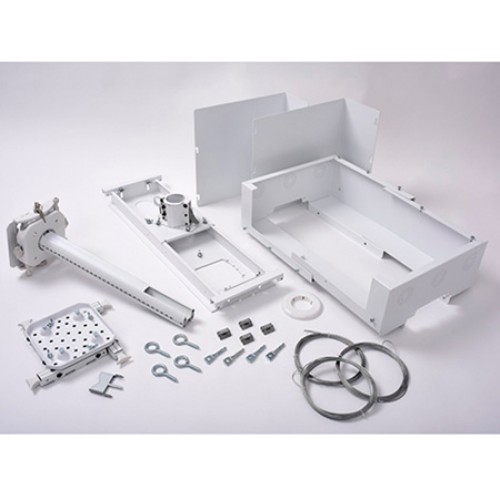

Chief SYS474UW Suspended Ceiling Projector System with Storage
- Brands Chief Mounts
- Product Code:CHF-SYS474UW
- Availability:In Stock
-
$685.00
Designed for speed and flexibility from an ordering and installation standpoint. Chief's SYS474UW Suspended Ceiling Projector System cuts installation time by one-third and includes everything needed to complete the majority of installations. This option includes a flexible and scalable plenum-rated storage box.
Features:
- System comes out of box in the order needed with mount and column preassembled
- Adjustable ceiling plate allows placement above or below tile and accommodates inconsistent T-grids
- Compatible with 2' x 2', 2' x 4', 60 x 60cm, & 62.5 x 62.5cm ceiling grids
- Detachable electric plate for pre-wiring
- Compatible with popular 2 gang adjustable mud rings
- Tool-Free Microzone adjustment eliminates the need for set screws
- Centris Technology enables effortless fingertip positioning with new tool-free lockdown
- Adjustable 0-12" column with dual inlay channels for high and low voltage cables
- Q-Lock Quick Release Lever provides quick connect/disconnect of the projector for service and enhanced security with an integrated key and lock system
- Improved universal interface for easier lock/unlock at projector connection
- Plenum-rated enclosure is scalable to fit AV equipment
- Shift enclosure along tile bridge to avoid plenum interferences
- Removable covers enable side access in shallow plenum spaces and full access from above
- Six trade size conduit knockouts in 0.5", 1", 1.5" (12, 25, 38 mm)
- Flexible conduit knockouts allow high voltage conduit to pass through plenum box when the power is facing into the room below.
Specifications:
- Adjustments: Roll, Pitch, Yaw (3°, 10°, 360°)
- Certifications: UL Listed
- Color: White
- Extension: 0 - 12" ( 0 - 304.8 mm)
- Max Equip Size H x W x D: 5 x 17 x 12.5" (127 x 432 x 317 mm)
- NotesStorage: Collapsed Width 12" (305 mm); Expanded Dimensions 5.38 x 22 x 13" (137 x 559 x 330 mm)
- Overall Dimensions (H x W x D): 19.82" x 7.25" x 24.94" (503.5 x 184.2 x 633.6 mm)
- Shipping Weight: 40.80 lbs (18.51 kg)
- Solution Type: Universal
- Weight Capacity: 35 lbs (15.9 kg)
