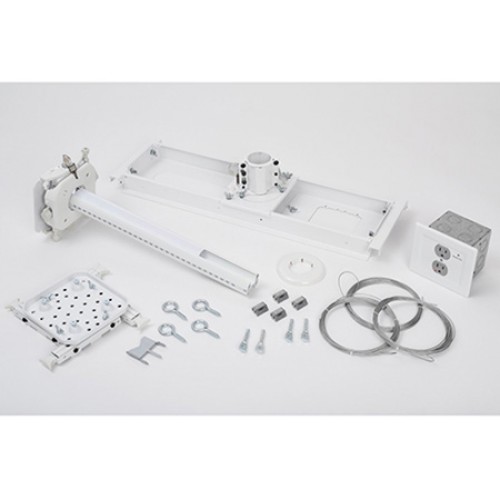

Chief SYSAUWP2 Suspended Ceiling Projector System with 2-Gang Filter & Surge

Designed for speed and flexibility from an ordering and installation standpoint. Chief's SYSAUWP2 Suspended Ceiling Projector System cuts installation time by one-third and includes everything needed to complete the majority of installations. Includes a high-performance, dual gang housing, isolated ground, dual receptacle outlet featuring the SurgeX non-sacrificial multi-stage filtration and surge protection system. This protects equipment from disruptive high frequency noise and damage caused by power disturbances.

Chief's powered solutions were co-developed with SurgeX, a brand of AMETEK Electronic Systems Protection.

Features:

• System comes out of box in the order needed with mount and column preassembled
• Adjustable ceiling plate allows placement above or below tile and accommodates inconsistent T-grids
• Compatible with 2' x 2', 2' x 4', 60 x 60cm, & 62.5 x 62.5cm ceiling grids
• Detachable electric plate for pre-wiring
• Compatible with popular 2 gang adjustable mud rings
• Tool-Free Microzone adjustment eliminates the need for set screws
• Centris Technology enables effortless fingertip positioning with new tool-free lockdown
• Adjustable 0-12" column with dual inlay channels for high and low voltage cables
• Q-Lock Quick Release Lever provides quick connect/disconnect of the projector for service and enhanced security with an integrated key and lock system
• Improved universal interface for easier lock/unlock at projector connection
  Non-volatile spike protection with LED power indicator
• Non-sacrificial multi-stage technology
• Non-current limiting design passes full power on a regular circuit; redundant protection circuits
• Improves the reliability and functionality of connected equipment by safeguarding equipment from high energy transients, lightning strikes and electronic noise events that can cause gear degradation and downtime
• Line filter reduces common and differential mode noise by up to 40 dB
• Rated for 125V~, 60Hz, 15 A
• 1800 watt maximum
• Ferrite toroid based EMI Filter
• Withstand rating of 240 VAC continuous without damage or loss of protection

Specifications:

• Adjustments: Roll, Pitch, Yaw (3°, 10°, 360°)
• Certifications: UL Listed
• Color: White
• Extension:0 - 12" (0 - 304.8 mm)
• Notes Output: 15A, 1875 W continuous
• Overall Dimensions (H x W x D): 19.82" x 7.25" x 24.94" (503.5 x 184.2 x 633.6 mm)
• Power Consumption:
• Type 3 Surge Protective Device: (SPD)
• Voltage Protection Rating (VPR): 600V L-N, N-G; 800V L-G
• Maximum Continuous Operating Voltage: (MCOV): 240V
• Nominal Discharge Current (In): 3kA
• Short Circuit Current Rating (SCCR): 5kA
• Ambient Temperature Max: 40 degrees C
• Shipping Weight: 25.00 lbs (11.34 kg)
• Solution Type: Universal
• Weight Capacity: 35 lbs (15.9 kg)
