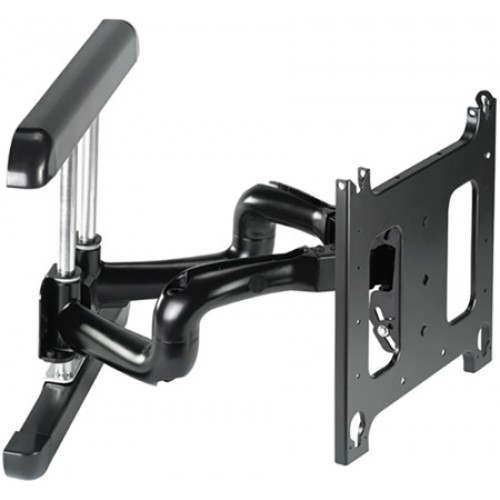

Chief PNR2000B Large Flat Panel Swing Arm Wall Mount - 25 Inch without Interface
- Brands Chief Mounts
- Product Code:CHF-PNR2000B
- Availability:In Stock
-
$724.00
View large flat panel displays from any angle with the PNR2000B large flat panel swing arm wall mount.
Features:
- Centris Fingertip Tilt allows you to select the perfect tension for your screens center of gravity
- Post-installation height adjustment up to 1 (25 mm) for ultimate flexibility
- Q-Latch Mounting System secures flat panel to mount with a latching flag
- Easy connect/disconnect without tools
- Extends up to 25 (635 mm) for viewing from any angle
- CableTrac System provides channeled cable management for easy cable routing
- Screen can be installed in portrait or landscape orientation (PAC400 accessory can be used to rotate without removing the screen)
Specifications:
- Certifications: UL Listed
- Color: Black
- Lateral Shift: 9" (229 mm)
- Manual Height Adjustment: 1" (25 mm)
- Maximum Extension: 25" (635 mm)
- Minimum Depth: 3.25" (82.6 mm)
- Mounting Pattern Compatibility (Universal Versions): 200 x 200mm - 862 x 517mm
- Notes: Depth and Extension do not include interface bracket (adds 0.5 - 1.5")
- Orientation: landscape and portrait
- Overall Dimensions (H x W x D): 21.2" x 27.1" x 3.3" (538 x 687 x 84mm)
- Post-Installation Leveling Roll: Yes
- Shipping Weight: 52 lbs (23.59 kg)
- Solution Type: Custom
- Tilt: + 5° , - 15°
- Typical Screen Sizes: 42 - 71"
- Wall Stud Compatibility In: 16" (406 mm)
- Weight Capacity: 200 lbs (90.7 kg)
