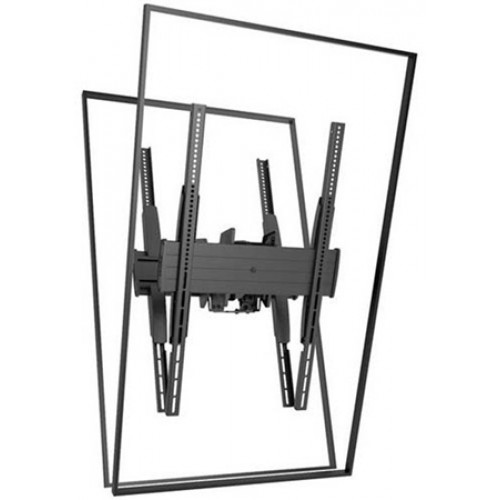

Chief LCB1UP FUSION Large Flat Panel Ceiling Mount

Chiefs LCB1UP FUSION™ Flat Panel Ceiling Mounts are installer inspired and offer perfect display positioning and flexible adjustments for large flat panel screens. Great for digital signage installations.

Ceiling Plate and Extension Column are required and must be ordered separately
Compatible with traditional 1.5" NPT and new CPA pinned ceiling plates and column system
Stackable on a single pole when used with CPA columns

Features:

• Fusion back-to-back display mount features:
• Repeatability
  Continuous tilt ranges with four set locking points to eliminate guess work when adjusting multiple screens.
• Accessibility
  Simple on/off connection for ease of installation and service.
• Centris® Fingertip Tilt
  Effortlessly adjust display using Centris fingertip tilt technology.
• Simple & Secure
  Tool free screen engagement with optional padlock security.
• Flexibility
  Mount swivels to any preferred viewing angle.
  Stackable on a single pole when used with CPA columns

Specifications:

• Adjustments: Roll, +/-3°
• Certifications: UL Listed
• Color: Black
• Equipment Weight Capacity: 125lbs (56.7kg) per screen
• Mounting Pattern Compatibility (Universal Versions): 7.87" x 3.93" (200mm x 100mm) - 18.11" x 31.50" (460mm x 800mm)
• Orientation: LCB1U - Landscape, LCB1UP - Portrait
• Overall Dimensions (H x W x D): 32.5" x 20.8" x 10.2" (826mm x 529mm x 259mm)
• Shipping Weight:49.00lbs
• Tilt: +5°, -20°
• Typical Screen Sizes: 32" - 60"
