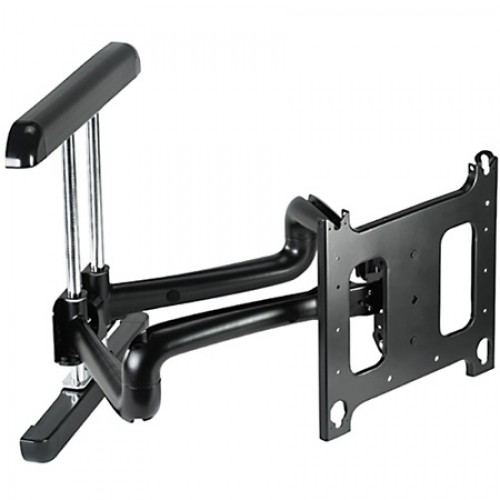

Chief PDR2000B Flat Panel Dual Swing Arm Wall Mount (42-71 Inch Displays) Black
- Brands Chief Mounts
- Product Code:CHF-PDR2000B
- Availability:In Stock
-
$856.00
The PDR allows for perfect LCD or Plasma TV placement, and ensures ideal viewing from any angle.
Features:
- Centris Technology tilt mechanism adjusts to provide fingertip tilt with most flat panels
- Post-installation height adjustment up to 1" (25 mm) for ultimate installation flexibility
- Q-Latch Mounting System secures flat panel to mount with a latching flag
- Extends 37" (93.98 cm) for viewing from any angle, and remains low-profile in home position
- CableTrac System provides built-in cable management channels inside the arms for a clean installation
- Screen can be installed in portrait or landscape orientation (PAC400 accessory can be used to rotate without removing the screen)
Specifications:
- Depth From Wall*: 3.4" (86 mm)
- Extension: 37" (940 mm)
- Tilt/Roll: +5°, -17° / ±2.5°
- Swivel: up to 90° left/right
- Height Adjustment: 1" (25 mm)
- Lateral Shift: up to 9" (229 mm)
- Mounts on Studs: 16" (406 mm) on-center with 4.5" (114 mm) left/right lateral shift
- Dimensions (HxWxD): 22.04" x 39.5" x 3.4" (56 x 100.3 x 8.6 cm)
- Color: Black or Silver
- Weight Capacity: 200 lbs (90.7 kg)
- Channel Size Width Each Arm: 0.63" (16 mm)
*Note: Depth does not include screen interface (will add 0.5"-2")
