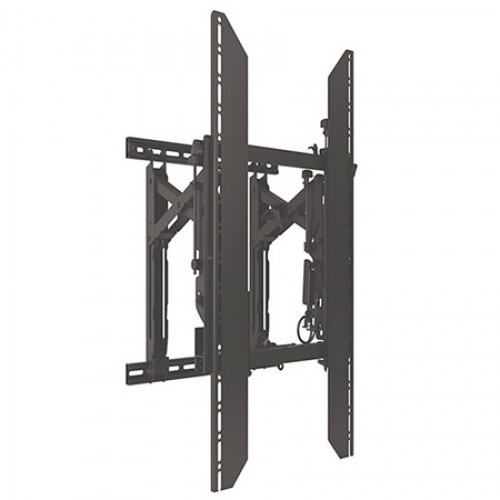

Chief LVS1UP Connexsys Video Wall System Port with Rails
- Brands Chief Mounts
- Product Code:CHF-LVS1UP
- Availability:In Stock
-
$920.00
Chief's ConnexSys Video Wall Mounting System solves common video wall challenges of speed, alignment, serviceability and rigidity. The ConnexSys Video Wall Mounting System provides the ability to level each row once by using strut channel to connect multiple mounts together with a simple-to-install system that can handle the largest requirements.
Features:
- Hang units on a single strut channel for quick row leveling
- Reduces installation time - especially for XL and recessed configurations
- Tool-free Click Connect latching secures displays
- PowerZone provides 6 points of adjustment in one easy-to-access location at the top of the mount
- 3 levels of lateral adjustment
- Rapid Draw Display Release
- Kickstand provides 20 degrees of bottom tilt access
- Rigid frame keeps displays where you set them, even after extending for service
- Adjustable home depth position locks screens in place to maintain alignment despite accidental bumps/pushes
- Security - pad lock ¼" shank diameter
- Safety tested
- Universal interface
- Each mount comes out of the box with adjustments set in the exact same position
Specifications:
- Certifications: UL Listed
- Color: Black
- Manual Height Adjustment: ± 1"
- Maximum Extension: 13.4" (34.0 cm)
- Minimum Depth: 4"
- Mounting Pattern Compatibility (Universal Versions): 200 x 100 - 800 x 400 mm
- Number Of Monitors: 1
- Orientation: Portrait
- Overall Dimensions (H x W x D): 32.5 x 19.5 x 4.1" (826 x 495 x 104 mm)
- Shipping Weight: 42 lbs (19.05 kg)
- Solution Type: Universal
- Tilt: + 4.0°, -2.5°
- Typical Screen Sizes: 40 - 80"
- Weight Capacity: 150 lbs (68 kg)
Warranty:
- 10 Years
