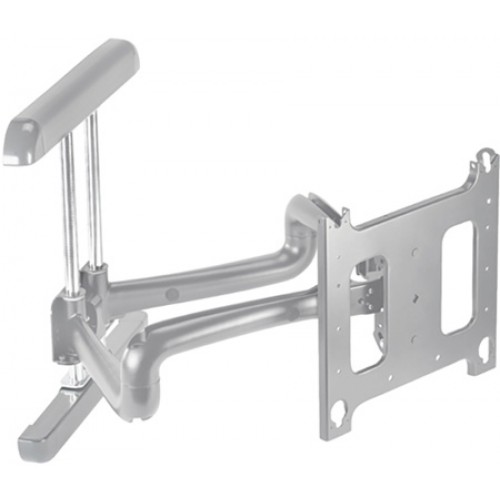

Chief PDRUS Large Flat Panel Swing Arm Wall Display Mount - 37 Inch Extension
- Brands Chief Mounts
- Product Code:CHF-PDRUS
- Availability:In Stock
-
$967.00
The PDRUS swing arm mount allows for perfect flat panel display placement and ensures ideal viewing from any angle.
Features:
- Centris Technology tilt mechanism adjusts to provide fingertip tilt with most flat panels
- Post-installation height adjustment up to 1" (25 mm) for ultimate installation flexibility
- Q-Latch Mounting System secures flat panel to mount with a latching flag
- Extends 37" (93.98 cm) for viewing from any angle, and remains low-profile in home position
- CableTrac System provides built-in cable management channels inside the arms for a clean installation
- Screen can be installed in portrait or landscape orientation (PAC400 accessory can be used to rotate without removing the screen).
Specifications:
- Certifications: UL Listed
- Color: Silver
- Lateral Shift: 9" (229 mm)
- Manual Height Adjustment: 1" (25 mm)
- Maximum Extension: 37" (939.8mm)
- Minimum Depth: 3.4" (86.4mm)
- Mounting Pattern Compatibility (Universal Versions): 200 x 200mm - 862 x 517mm
- Notes: Depth and Extension do not include interface bracket (adds 0.5 - 1.5")
- Orientation: landscape and portrait
- Overall Dimensions (H x W x D): 22.0" x 39.5" x 3.4" (560 x 1003 x 86mm)
- Post-Installation Leveling Roll: Yes
- Shipping Weight: 70 lbs (31.75 kg)
- Solution Type: Universal
- Tilt: + 5° , - 16°
- Typical Screen Sizes: 42 - 71"
- Wall Stud Compatibility In: 16" (406 mm)
- Weight Capacity: 200 lbs (90.7 kg)
