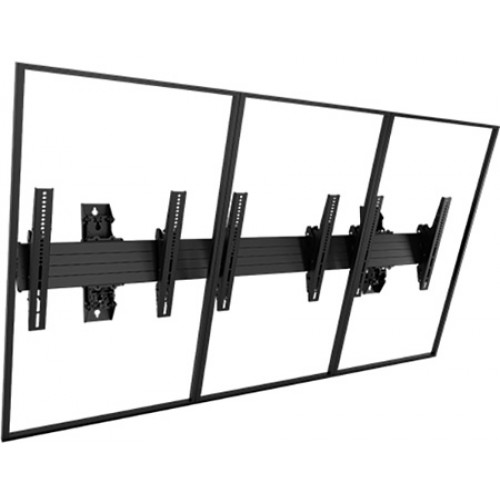

Chief LWM3X1UP Fusion Large 3X1 Menu Board - Portrait
- Brands Chief Mounts
- Product Code:CHF-LWM3X1UP
- Availability:In Stock
-
$1,250.00
The LWM3X1UP Fusion® menu board wall mount offers perfect display positioning and flexible adjustments. The single horizontal extrusion with depth adjustment aligns the screens quickly even on irregular mounting surfaces and allows easy access behind the displays for servicing.
Features:
- Single horizontal extrusion keeps screens aligned
- ControlZone™ micro-height adjustment
- Centris® tilt between +0 and -20 degrees
- Tool-free screen engagement
- Portrait and landscape options for 2x1 and 3x1 configurations
- Landscape for 4x1 and 5x1 configurations
- Accommodate 40-55” screens
- Optional padlock security
- Full line of accessories that work across Fusion wall, ceiling and freestanding lines
Specifications:
- Adjustments: Depth Adjust 0" - 1"
- Certifications: UL Listed
- Color: Black
- Manual Height Adjustment: 2" (or +/- 1")
- Minimum Depth: 5.8"
- Mounting Pattern Compatibility (Universal Versions): any width x 100 - 800 mm
- Number of Monitors: 3
- Orientation: Portrait
- Overall Dimensions (H x W x D): 32.5 x 68.8 x 5.8" (826 x 1748 x 147 mm)
- Post-Installation Leveling Roll: Dependant upon wall spacing
- Screen Array Configuration: 3 x 1
- Solution Type: Universal
- Tilt+0° , -20°
- Typical Screen Sizes: 40-55"
- Weight Capacity: 125 lbs (56.7 kg) per display
