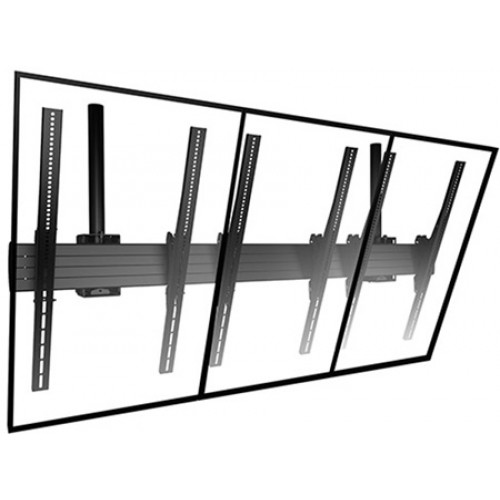

Chief LCM3X1UP FUSION Large Ceiling Mounted 3 x 1 Portrait Menu Board
- Brands Chief Mounts
- Product Code:CHF-LCM3X1UP
- Availability:In Stock
-
$1,250.00
Chief's LCM3X1UP Fusion ceiling mounted solution makes it possible to construct menu boards in prominent locations where walls aren't available. Combine to easily create longer menu boards. Great for digital signage installations.
Features:
- Screen array configuration: screens wide x screens high.
- Single horizontal extrusion keeps screens aligned
- Tilting interfaces with Centris technology makes for easy adjustment for +5 / -20 degrees
- Tool-free screen engagement
- Secure displays with optional pad-lock security
- Fits screens 40 - 55" diagonals, add FCAX extension brackets for larger screens up to 65
- CEILING PLATE and EXTENSION COLUMN are required and must be ordered separately
- Compatible with traditional 1.5" NPT and new CPA pinned ceiling plates and column systems
- See ceiling plates and extension columns (Adjustable and Fixed) for 1.5" NPT compatibility
- See CPA ceiling plates and CPA columns for pin connection compatibility
- Recommended ceiling plates for multi-display ceiling mounts (PDF)
- TAA Compliant
Specifications:
- Adjustments: 2" Micro adjustment at structural intersection points
- Certifications: UL Listed
- Color: Black
- Mounting Pattern Compatibility (Universal Versions): Any width x 100 - 800 mm
- Notes: Weight capacity is per display
- Number of Monitors: 3
- Orientation: Portrait
- Screen Array Configuration: 3 x 1
- Shipping Weight: 62 lbs (28.12 kg)
- Solution Type: Universal
- Tilt: + 5° , - 20°
- Typical Screen Sizes: 40 - 55" (up to 65" with FCAX extension brackets)
- Weight Capacity: 125 lbs (56.7 kg)
