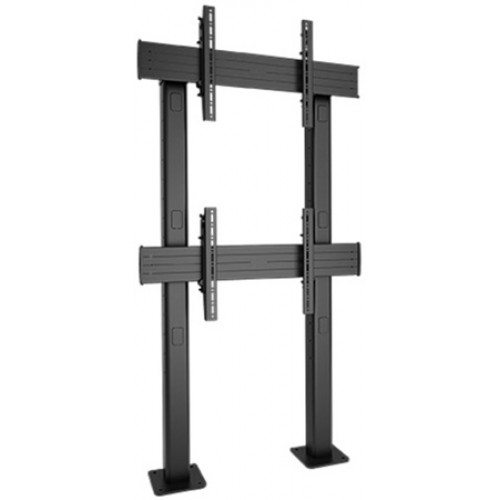

Chief LBM1X2U FUSION 1 X 2 Micro-Adjustable Bolt-Down Freestanding Video Wall
- Brands Chief Mounts
- Product Code:CHF-LBM1X2U
- Availability:In Stock
-
$3,620.00
Chief's LBM1X2U FUSION™ Bolt-Down freestanding solution makes it possible to construct video walls in prominent locations for permanent applications.
Screen array configuration: 1 screen wide x 2 screens high in landscape.
Features:
- 1 x 2 landscape screen arrangement for 42" - 80" screens.
- Easily align displays with independent height, plumb and lateral shift adjustment
- Bolt-down solution allows for a permanent solution
- Integrated cable management for a clean installation
- TAA Compliant
Specifications:
- Center of Display to Floor/Table Range: 64.4" (1635mm) (maximum top) - 16.38" (416mm) (minimum bottom)
- Certifications: UL Listed
- Color: Black
- Lateral Shift: Yes
- Manual Height Adjustment: Micro-adjustment up to 0.75" (19 mm) per screen
- Mounting Pattern Compatibility (Universal Versions): 3.93 " x 3.93" (100mm x 100mm) - 35.43" x 15.75" (900mm x 400mm)
- Orientation: Landscape
- Overall Dimensions (H x W x D): 66.5" x 36" x 7.5" (1689mm x 914mm x 191mm)
- Plumb Adjustment: Micro-adjustment up to 0.75" (19mm)
- Screen Array Configuration: 1 x 2
- Shipping Weight: 190.00lbs
- Solution Type: Universal
- Typical Screen Sizes: 42" - 80"
- Weight Capacity: 125lbs (56.7kg) per display
