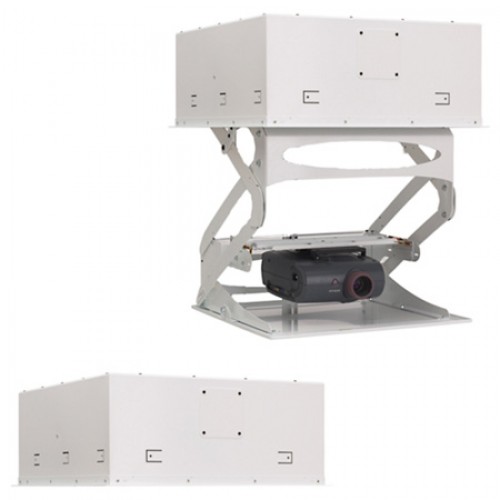

Chief SL236FD SMART-LIFT Automated Projector Mount for Fixed Ceilings
- Brands Chief Mounts
- Product Code:CHF-SL236FD
- Availability:In Stock
-
$4,556.00
Exceptionally smooth and quiet movement, the SL236 is a good in-ceiling LCD projector mount choice for finished ceilings in homes and corporate offices.
Fits most installation requirements, needing only 11" of clearance above the ceiling
Easily accommodates multiple control options
Rated for other air handling spaces; not UL Listed.
**To confirm the compatibility of this mount with your projector, visit Chief's MountFinder PRO. the MountFinder PRO will determine which SLB Interface Bracket you will need to order for your specific projector to fit INTO the SMART-LIFT. Select "Interface Bracket" from the list of Mount Types.
Specifications:
- Downward Travel: 36" (914 mm)
- Minimum Clearance Above Ceiling: 11" (279 mm)
- Overall Dimension (Up Position - H x W x D): 11 x 25 x 27.5" (279 x 635 x 699 mm)
- Maximum Projector Size (H x W x D): 9.25 x 20.5 x 22.75" (235 x 521 x 578 mm)
- Ceiling Opening (W x D): 25.5 x 27.75" (647 x 705 mm)
- Ceiling Closure Panel (W x D): 24 x 24" (610 x 610 mm)
- Voltage: 120V or 230V
- Low Voltage: Will accept 5-30V AC/DC for triggering commands
- Current Draw: 0.75 Amps Continuous.All electrical components are CSA and VDE listed
- Net Weight: 107 lbs (48.5 kg)
- Lift Capacity: 35 lbs (15.9 kg)
- Roll/Pitch/Yaw Adjustments: +/-2°, +/- 15°, +/-10°
- Fore/aft and right/left projector cradle positioning
CHF-SL236FD: For Fixed Ceiling Installations - CHF-SL236SP: For Suspended Ceiling Installations
