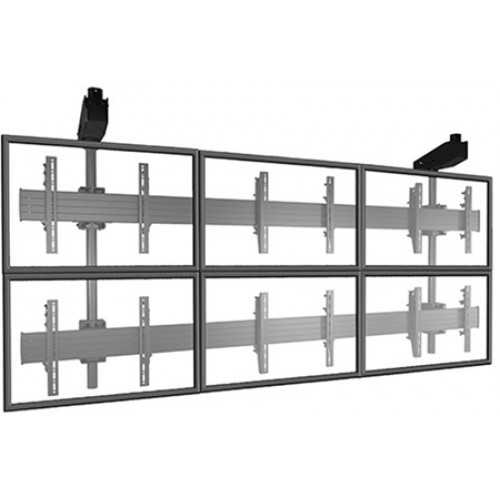

Chief LCM3X2U FUSION Micro-Adjustable Large Mounted 3 x 2 Video Wall Solutions

Chief's LCM3X2U FUSION ceiling mounted solutions make it possible to construct video walls in prominent locations where walls aren't available. Comes in 2 x 2, 3 x 2 and 3 x 3 arrangements. Great for digital signage installations.

Features:

• Easily align displays with independent knobs for height and plumb adjustments, no tools required.
• Micro-height and leveling adjustment at all column intersection points.
• Infinite vertical and lateral adjustments provide tight display rows and columns.
• Solid construction supports displays up to 55" and 125 lbs. (56.7 kg) per screen.
• Add configurations side by side to create any video wall arrangements up to 3 screens tall.
• Ceiling plate and extension column are required and must be ordered separately
• Compatible with traditional 1.5" NPT and new CPA pinned ceiling plates and column systems.
• See ceiling plates and extension columns (Adjustable and Fixed) for 1.5" NPT compatibility.
• See CPA ceiling plates and CPA columns for pin connection compatibility.
• Recommended ceiling plates for multi-display ceiling mounts (PDF).
• Screen array configuration: screens wide x screens high.

Specifications:

• Adjustments: Micro-Adjustments of 2" at structural intersection points
• Certifications: UL Listed, TAA Compliant
• Color: Black
• Manual Height Adjustment: 1" (25 mm) increments at structural intersections
• Mounting Pattern Compatibility (Universal Versions): any width x 100 mm - 400 mm
• Notes: Weight capacity is per display
• Number of Monitors: 6
• Orientation: Landscape
• Plumb Adjustment: Micro-adjustment up to 0.75" (19 mm)
• Screen Array Configuration: 3 x 2
• Shipping Weight: 188 lbs (85.28 kg)
• Typical Screen Sizes: 42" - 50" (107 - 127 cm)
• Weight Capacity: 125 lbs (56.7 kg)
