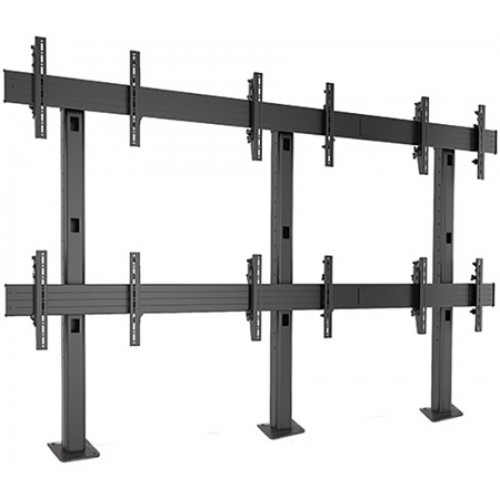

Chief LBM3X2U FUSION 3x2 Micro-Adjustable Large Bolt-Down Freestanding Wall
- Brands Chief Mounts
- Product Code:CHF-LBM3X2U
- Availability:In Stock
-
$5,696.00
Chief's LBM3X2U FUSION™ Bolt-Down freestanding solution makes it possible to construct video walls in prominent locations for permanent applications.
Screen array configuration: 3 screens wide x 2 screens high.
Features:
- 3 x 2 screen arrangement for 42" - 46" screens. Larger displays possible with FCAX brackets.
- Easily align displays with independent height, plumb and lateral shift adjustment
- Bolt-down solution allows for a permanent solution
- Integrated cable management for a clean installation
- TAA Compliant
Specifications:
- Center of Display to Floor/Table Range: 16.38" (416mm) (minimum bottom row) - 64.38" (1635mm) (maximum top row)
- Certifications: UL Listed
- Color: Black
- Lateral Shift: Yes
- Manual Height Adjustment: Micro-adjustment up to 0.75" (19mm) per screen
- Mounting Pattern Compatibility (Universal Versions): Any Width x 3.93" - 15.75" (100 mm - 400 mm)
- Orientation: Landscape
- Overall Dimensions (H x W x D): 72.9" x 108.9" x 9.43" (1852mm x 2766mm x 239 mm)
- Plumb Adjustment: Micro-adjustment up to 0.75" (19mm)
- Screen Array Configuration: 3 x 2
- Shipping Weight: 232.00lbs
- Solution Type: Universal
- Typical Screen Sizes: 42" - 46" (Larger displays possible with FCAX brackets)
- Weight Capacity: 125lbs (56.7kg)
