Chauvet ROGUE R1 WASH Compact Wash Mover w/ 7 15-Watt Quad LED & 8-30 Degree Zoom Range
- Brands Chauvet Professional
- Product Code:CHVT-ROGUER1WASH
- Availability:In Stock
-
$1,127.82

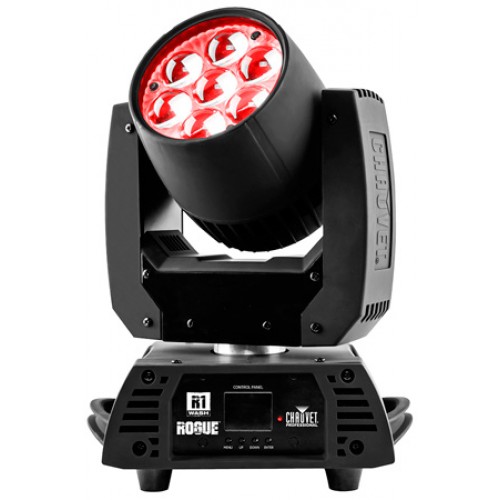

Chauvet Rogue R1 Wash
New to the Rogue family, a powerful wash unit with smooth color blending for stunning visual effects. Meet the Rogue R1 Wash, a versatile and bright LED wash that is guaranteed to give you the coverage you need at the speed you require. Rogue R1 Wash features smooth pan and tilt operation, an 11° to 48° zoom range that gives you the spread to cover the gamut of entertainment genres, and a unique lens system that gives you an even, professionally combined wash of color.
Features:
- 7 RGBW LEDs, 15 W each
- 3- and 5-pin DMX input/output connections
- Unique lens design for excellent color blending
- Fast, smooth pan and tilt movement
- 6 distinct dimming modes for advanced control
- Omega mounting bracket, fits all Rogue, Next, and Legend fixtures
- Easy to read OLED display with simple, effective menu options
- Simple and complex DMX channel profiles for programming versatility
Specifications:
- DMX Channels: 14, 15, 19 or 21
- Data Connectors: 3- and 5-pin XLR
- Light Source: 7 LEDs (quad-color RGBW) 15 W, (980 mA), 50,000 hours life expectancy
- Pan and Tilt: 540°/230°
- Pan and Tilt Ranges: 180°, 360°, 540° pan/90°, 180°, 230° tilt
- Automatic Pan/Tilt Correction: Yes
- Built-in Automated Programs: Yes
- Customizable Programs: No
- Recall Custom Programs: No
- Dimmer: Electronic
- Shutter/Strobe: Electronic
- Strobe Rate: 0 to 20 Hz
- Standalone Color Mixing: Yes
- Color Temperature Presets: Yes
- Beam Angle: 8° to 30°
- Field Angle: 11° to 48°
- Zoom Angle: 11° to 48°
- Dimming Modes: 6
- Illuminance (11°): 3,098 lux @ 5 m
- Illuminance (48°): 299 lux @ 5 m
- Color Temperature (range): 2800 to 10000 K
- IP Rating: IP20, dry location
- Cable Length: 5 ft (1.5 m)
- Power Connection: Edison plug to Neutrik powerCON
- Power Input: Neutrik powerCON
- Power Output: Neutrik powerCON
- Power Linking: 10 units @ 120 V; 18 units @208 V; 21 units @ 230 V
- Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
- Power and Current: 161 W, 1.34 A @ 120 V, 60 Hz
- Power and Current: 141 W, 0.72 A @ 208 V, 60 Hz
- Power and Current: 139 W, 0.62 A @ 230 V, 50 Hz
- Weight: 13 lb (5.9 kg)
- Dimensions: 7.36 x 10.43 x 13.94 in (187 x 265 x 354 mm)
- Approvals: CE, MET
