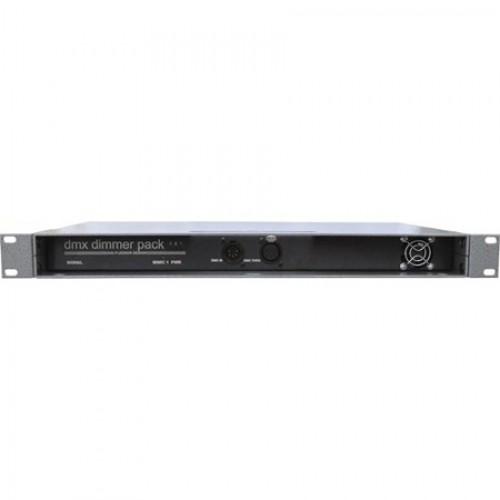

Doug Fleenor Design DMX512DIM-ELV 12 Channel 100w Dimmer Pack

The Doug Fleenor Design DMX12DIM-ELV is a 12 channel, 100 Watt per channel dimmer pack. It is fed by a single 120VAC 15A branch circuit. Each of the dimmers can be separately controlled using a DMX512-based lighting controller.

The dimmers use MOSFET power devices. The dimmed outputs are Electronic Low Voltage(ELV) compatible using reverse phase (aka: trailing edge) control techniques. The DMX12DIM-ELV is housed in an enclosure suitable for portable use or for mounting in a standard 19" rack. The DMX12DIM ELV occupies 1U of rack space. The DMX12DIM-ELV provides grounded parallel blade output connectors.

Specifications:

• Input circuit: Protected EIA-485 receiver (LT1785)
• Input protection: Undamaged by up to 60 Volts continuous, 15KV transients
• Input signal: 0.2 volts minimum, 12 volts maximum, DMX512, DMX512/1990, or DMX512-A
• Input connector: Gold plated 5 pin male XLR (Neutrik D-1 series) 3 pin XLR optional
• Input pass through: Gold plated 5 pin female XLR (Neutrik D-1 series). All five pins are passed through
• Termination: None. Unused pass through connectors must be externally terminated
• Power input: 120 VAC 60 Hz 10 Amps at full load. Actual current draw is 0.07A plus connected load
• Power input connector: NEMA 5-15P (15A U-ground) on 18 inch 12 gauge pigtail
• Idle power: 7 Watts
• Power output: 120 VAC 60 Hz 0.83 Amps (100W) maximum per output
• Minimum load: No minimum load requirement
• Output protection: 1.5A internal fuse on each output channel
• Output connectors: NEMA 5-15R (15A grounded parallel blade)
• Dimming circuit: Digitally fired, opto-isolated, MOSFET power devices. These components allow for forward or reverse phase dimmer control
• Rise/fall time: 2 uS (10% to 90% at 90 degree firing angle) at rated load
• Dimming curve: Square law. Visually appealing on LED lamps (120V), halogen lamps, magnetic lowv oltage (MLV) and electronic low-voltage (ELV)
• Non-dim curve: Each channel can be configured as a non-dim which turns on at 60%, off at 40%
• Outputs switch on at zero crossing. Other non-dim trip point options include 50% and 1% (globally settable)
• DMX footprint: Twelve consecutive DMX slots beginning with the selected DMX starting address
• DMX starting address: Three digit front panel thumbwheel switch. Address changes are immediate (no power cycling required)
• Local control: An "address switch" setting of 601 turns on output 1, 602 turns on output 2, etc. Setting; 699 turns on all outputs. Setting 698 turns on all outputs when DMX is present. Setting; 697 turns on all outputs if any DMX level is above zero.
• Status indicators: Red POWER indicator; Green MIMIC 1 indicator mimics the intensity of output 1 (useful in troubleshooting); Green SIGNAL indicator illuminates when DMX512 is present; flashes when local control is active (address switch settings of 601 thru 624 and 697 thru 699).
• Cooling: Processor controlled low speed fan exchanges internal air from front to side.
• Isolation: DMX512 input is optically isolated from AC power circuits to 600 Volts.
• Color: Silver hammer tone with black front and rear panels.
• Safety listing: Pending ETL Listing to UL 508
• Size(H x D x W): 1.7 in x 10.5 in 19 in (17 in behind rack ears)
• Weight: 7 pounds

Item Includes:

• Rack ears

Warranty:

• 5 year
