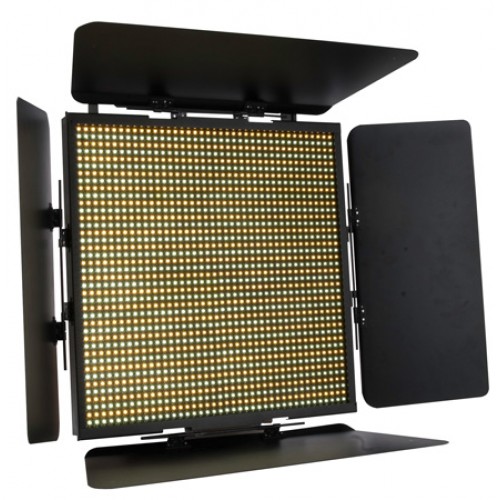

Elation Professional TVL625 TVL4000 III High CRI LED TV Studio Light
- Brands Elation
- Product Code:ELAT-TVL625
- Availability:In Stock
-
$1,575.00
The new improved TVL4000 II features a low heat, >90CRI, dynamic LED array panel consisting of 800 warm white and 800 cool white LEDs, 30° beam angle, variable manual and DMX controlled color temperature (3,200K 6,500K) and dimming, adjustable barn doors, magnetic gel/diffuser holder, flicker free operation for broadcast TV and FILM, 3 and 5 pin DMX in/out and power in connections, (4) button (2) dial LCD display control panel, 160W max power consumption, and a multi-voltage universal auto switching power supply (100-240v).
Features:
- Low Heat, >90CRI Dynamic LED Array Panel
- 30° Beam Angle
- Variable Color Temperature Settings (3,200K 6,500K)
- Adjustable Barn Doors
- Magnetic Gel/Diffuser Holder
- Manual and DMX Controlled Color Temp and Dimming
- Flicker Free Operation for Broadcast TV and FILM
Specifications:
- SOURCE
- (800) Warm White + (800) Cool White LEDs
- PHOTOMETRIC DATA
- 1500 LUX 139 FC @6.6’ (2M) (30° Warm White 3,200K)
- 1900 LUX 177 FC @6.6’ (2M) (30° Cool White 6,500K)
- 3400 LUX 316 FC @6.6’ (2M) (30° Full On 4,500-5,000K)
- EFFECTS
- Variable Color Temperature (3,200K 6,500K)
- Electronic Dimming (0% 100%)
- CONTROL / CONNECTIONS
- (3) DMX Channel Modes (2/2/3)
- Manual and DMX Color Temperature and Dimming
- (4) Button and (2) Dial Control Panel
- LCD Menu Display
- 3pin and 5pin DMX In/Out
- Power In
- SIZE / WEIGHT
- Length: 14.8” (376mm)
- Width: 13.3” (337mm)
- Vertical Height: 4.4” (113mm)
- Weight: 15.0 lbs. (6.8 kg)
- ELECTRICAL / THERMAL
- AC 100-240V 50/60Hz
- 160W Max Power Consumption
- TA: 40°C Max Ambient Temperature
- APPROVALS / RATINGS
- CE, cETLus, RoHs Compliant
- INSTALLATION
- Rigging: Clamp or Stand (Not Included)
- Working Position: Any (360°)
Warranty:
- 2 Years
