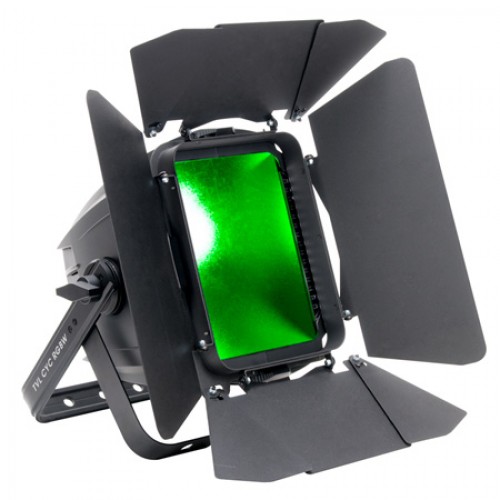

Elation TVL280 TVL CYC RGBW Theatre-Style Cyclorama Wall Wash
- Brands Elation
- Product Code:ELAT-TVL280
- Availability:In Stock
-
$1,575.00
The new TVL CYC RGBW theatre-style cyclorama wall wash luminaire that delivers a smooth and even field of seamlessly blended colors onto cycloramas, backcloths, scenery or any surface. Features include an energy-efficient 150W RGBW COB LED engine, a 90° x 113° elliptical beam angle, 8-leaf adjustable barn doors, 64 internal color macros, smooth color mixing and dimming, linear variable white color temperature presets (7200K - 3200K), selectable dimming curve and strobe effects, 5pin DMX and powerCON in/out connections, (4) button control panel, 180° reversible LCD menu display, 170W max power consumption, multiple unit power linking, and a multi-voltage universal auto switching power supply (100-240v).
Features:
- 150W COB RGBW LED
- 90° x 113° Elliptical Beam Angle
- 64 Internal Color Macros
- Smooth Color Mixing and 16bit Dimming
- Selectable Dimming Curve and Strobe Effects
- Linear Variable White Color Temp Presets (7200K - 3200K)
- Flicker Free Operation for TV and FILM
- 8-Leaf Adjustable Barn Doors Included
Specifications:
- SOURCE
- 150W COB RGBW LED
- 20,000 Hour Average LED Life*
*Lamp Life may vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
PHOTOMETRIC DATA (Full ON) - 884 LUX 82 FC @6.6' (2m)
EFFECTS - 64 Internal Color Macros
- Smooth Color Mixing and 16bit Dimming
- Selectable Dimming Curves and Electronic Strobe
- Linear Variable White Color Temp Presets (7200K - 3200K)
COLOR - RGBW Color Mixing
CONTROL / CONNECTIONS - (6) DMX Channel Modes (4 / 6 / 7 / 8 / 10 / 14)
- 4 Button Control Panel
- 180° Reversible LCD Menu Display
- 5pin DMX In/Out
- powerCON Power In/Out
SIZE / WEIGHT - Length: 16.7 (425mm)
- Width: 14.3" (364mm)
- Vertical Height: 16.5" (419mm)
- Weight: 13.0 lbs. (5.9 kg)
ELECTRICAL / THERMAL - AC 100-240V - 50/60Hz
- 170W Max Power Consumption
- 5F to 113°F (-15°C to 45°C)
APPROVALS / RATINGS - CE | RoHs | IP20
Item Includes:
- (1) powerCON Cable
