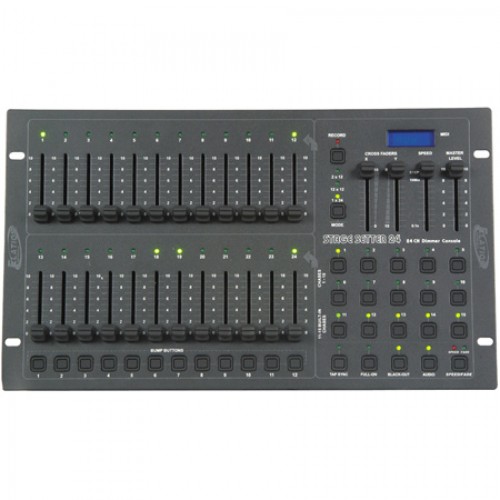

Elation Stage Setter-24 Professional Stage Dimming Console
- Brands Elation
- Product Code:ELAT-STAGESET-24
- Availability:In Stock
-
$235.00
The Elation Stage Setter-24 is a 24 channel stage/dimmer lighting console. Features include 2 x 12, 12 x 12, and 1 x 24 working modes, a total of 24 Channels DMX-512 (1990) output, 7 segment information display, scene master fader playbacks, scene master bump playbacks, 10 programmable chases, 5 built-in chases, tap sync speed from 0.1 sec to 10 min, separate speed & fade control for chase playback, X & Y manual scene crossfade, audio and MIDI triggers, and password protected chases.
Features:
- 24 Total Channels DMX-512 (1990) Output
- 7 Segment Information Display
- Scene Master Fader Playbacks
- Scene Master Bump Playbacks
- 10 Programmable Chases
- 5 Built-In Chases
- Tap Sync Speed (0.1 sec to 10 min)
- Separate Speed & Fade Control for Chase Playback
- X & Y Manual Scene Crossfade
- Audio Trigger
- MIDI Trigger
- Passcode Protected Chases
Specifications:
- CONTROL / CONNECTIONS
- 2 x 12, 12 x 12, 1 x 24 Modes
- (2) 3pin DMX Out
- 5pin MIDI In
- 5pin MIDI Through
- Audio In
- DC 12V-20V Power In
SIZE / WEIGHT - 8.75" (222.3mm) x 15.0" (381mm) x 3.25" (83mm)
- 8.0 lbs. (3.6kg)
ELECTRICAL - AC 120V - 60Hz
APPROVALS - CE
