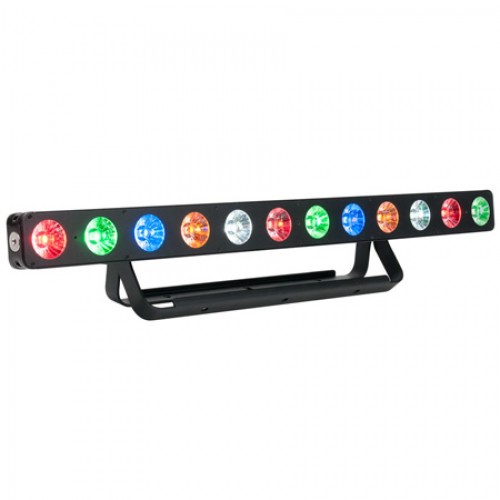

Elation Professional SIX086 Six Bar 1000 6 Color LED Bar 12X12 Watt
- Brands Elation
- Product Code:ELAT-SIX086
- Availability:In Stock
-
$900.00
The new SIXBAR 1000 features (12) 12W 6-IN-1 RGBAW+UV LEDs, 100,000 average hour LED life, 30° beam angle, individual control of each LED, variable dimming curve modes, strobe and chase effects, a UV wavelength of 395nm, ArtNet, KlingNet and RDM (remote device management) protocol support, 3pin and 5pin DMX, powerCon, and RJ45 in/out connections, LCD menu display with 4 button control panel, integrated dual rigging brackets, multiple unit power linking, rugged die-cast aluminum exterior, frost filter and glare shield included, flicker free operation for TV and FILM, 145W max power consumption, and a multi-voltage universal auto switching power supply (110-240v).
Features:
- 30° Beam Angle
- ArtNet and KlingNet Support
- RDM Remote Device Management
- Individual LED Control
- Variable Dimming Curve Modes
- Multiple Unit Power Linking
- Rugged Die-Cast Aluminum Exterior
- Flicker Free Operation for TV and FILM
Specifications:
- SOURCE
- (12) 12W 6-in-1 RGBAW+UV LEDs
- 100,000 Hour Average LED Life
- PHOTOMETRIC DATA
- 8,500 LUX 790 FC @3.3’ (1m) (30° Full ON)
- 3,660 LUX 340 FC @6.6’ (2m) (30° Full ON)
- 2,040 LUX 190 FC @9.8’ (3m) (30° Full ON)
- 1,290 LUX 120 FC @13.1’ (4m) (30° Full ON)
- 878 LUX 82 FC @16.4’ (5m) (30° Full ON)
- EFFECTS
- Strobe and Chase Effects
- Individual LED Control
- Variable and Selectable Dimming Curves
- CONTROL / CONNECTIONS
- 8 DMX Channel Modes (6 / 7 / 11 / 13 / 36 / 72 / 75 / 79)
- 4 Button Control Panel and LCD Menu Display
- ArtNet + KlingNET Protocol Support
- RDM (Remote Device Management)
- (2) etherCON Ports
- 3pin and 5pin DMX In/Out
- powerCON Power In/Out
- SIZE / WEIGHT
- Length: 35.4” (900mm)
- Width: 8.1” (206.4mm) *with included glare shield
- Vertical Height: 6.1” (155mm)
- Weight: 16.0 lbs. (7.3 kg)
- ELECTRICAL / THERMAL
- AC 110-240V 50/60Hz
- 145W Max Power Consumption
- Power Linking: 6pcs @110V / 15pcs @240V
- 5°F to 113°F (-15°C to 45°C)
- UV Wavelength: 395nm
- APPROVALS / RATINGS
- CE, cETLus, IP20
- INSTALLATION
- Rigging: Integrated Dual Rigging Brackets
- Working Position: Any (360°)
Item Includes:
- powerCON Cable
- Frost Filter
- Glare Shield
Warranty:
- 2 Years
