Elation MPCK01 M-Series MPC/LJ Kit Light Jockey 2 - with One-Key USB Dongle

M-PC gives you the same power and functionality as the software running on all the M-Series consoles. It can be installed on any PC running Windows 7 or higher (laptop not included). It is the same software you will find on the M2PC console surface and can also be used in conjunction with the M-Series Modules or as a tracking backup for M-Series consoles.

M-PC can be used for offline programming or can be linked to any ArtNet or sACN interface device for direct control of fixtures. It provides a high-value programming platform for a large variety of shows from a rock tour to a simple permanent installation.

M-PC is free to download and use. It gives the possibility of patching and programming a complete show with up to 128 universes offline. In Free mode four Artnet/sACN universes can be used without any protection dongle, use it to control simple shows or simply to test fixtures.
M-PC gives you the same power and functionality as the software running on all the M-Series consoles. It can be installed on any PC running Windows 7 or higher (laptop not included). It is the same software you will find on the M2PC console surface and can also be used in conjunction with the M-Series Modules or as a tracking backup for M-Series consoles.

M-PC can be used for offline programming or can be linked to any ArtNet or sACN interface device for direct control of fixtures. It provides a high-value programming platform for a large variety of shows from a rock tour to a simple permanent installation.

M-PC is free to download and use. It gives the possibility of patching and programming a complete show with up to 128 universes offline. In Free mode four Artnet/sACN universes can be used without any protection dongle, use it to control simple shows or simply to test fixtures.
M-PC gives you the same power and functionality as the software running on all the M-Series consoles. It can be installed on any PC running Windows 7 or higher (laptop not included). It is the same software you will find on the M2PC console surface and can also be used in conjunction with the M-Series Modules or as a tracking backup for M-Series consoles.

M-PC can be used for offline programming or can be linked to any ArtNet or sACN interface device for direct control of fixtures. It provides a high-value programming platform for a large variety of shows from a rock tour to a simple permanent installation.

M-PC is free to download and use. It gives the possibility of patching and programming a complete show with up to 128 universes offline. In Free mode four Artnet/sACN universes can be used without any protection dongle, use it to control simple shows or simply to test fixtures.

Features:

• Protocol: DMX 512, Art-Net, RDM-compatible, sACN
• Two DMX universes maximum with M-PC 2U
• 64 x DMX universes as standard with M-PC Pro
• Expandable up to 128 x DMX universes with M-PC ultimate
• Free MSD 6 3-D Visualizer Lite™ one-year license with M-PC Pro
• Extensive fixture library for all known manufacturers
• 65000 x presets for each group of functions (P/T, color, gobo, etc.)
• Effect generator for automated programming of complex effects
• Fan function for all channels (including timing parameters)
• On-the-fly global timing changes
• Individual parameter timings
• Intuitive patch feature
• Fixture type cloning and swapping
  CONTROL/USER INTERFACE
• All controls listed below are virtual, on-screen only, and are operated via touchscreen or mouse click Real-world paradigm intuitive interface (images, dynamic text labels and actuals preferred to figures) 10 x playback faders, each with four function-assignable buttons
• 10 x playback buttons, each with one function-assignable button
• 24 x submaster faders, each with one function-assignable button
• Numeric and functional keypad
• Main playback control section
• Flash master fader and button
• 8 x view buttons
  PLAYBACK
• 500 x playback banks, each containing 10 x playbacks
• 500 x submaster banks, each containing 24 x submasters, can all be active simultaneously
• 100 x pages of 100 x playbacks activated by touchscreen button
• Cuelists can be executed in tracking or non-tracking mode
• Unique Q-blender effect on playback override

Specifications:

• Direct communication with M-Series Modules via USB
• Art-Net and sACN compatible DMX distribution
• Supports M-DMX, Universal USB/DMX™ and USB Duo™ DMX Interface Boxes
• Supports all M-Series Modules, M-Touch and M-play
• Free M-Series Manager™ add-on for custom user interfaces and advanced scheduling, astronomical clock, supports GPS, commands by RS232, Telnet, UDP, and HTML
• Compatible with Martin ShowDesigner 6™
• DMX RDM bi-directional communication over M-DMX
• and compatible Art-Net devices

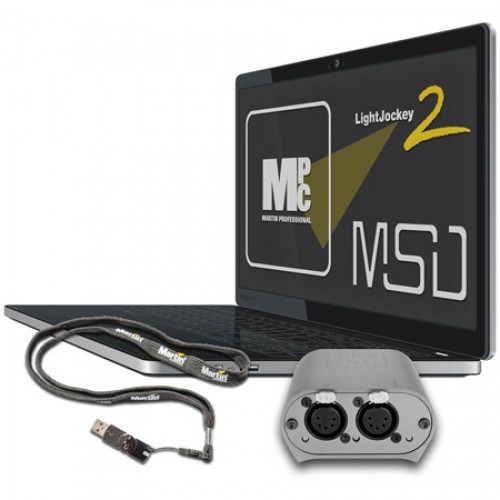

Item Includes:

• One-Key™ USB dongle with 64-universe M-PC™, 4-universe LightJockey 2™ licenses, and ShowDesigner 6 Lite™ 3D Visualizer one-year license
• M-DMX USB-DMX Interface Box
• USB cable

Warranty:

• 2 year
