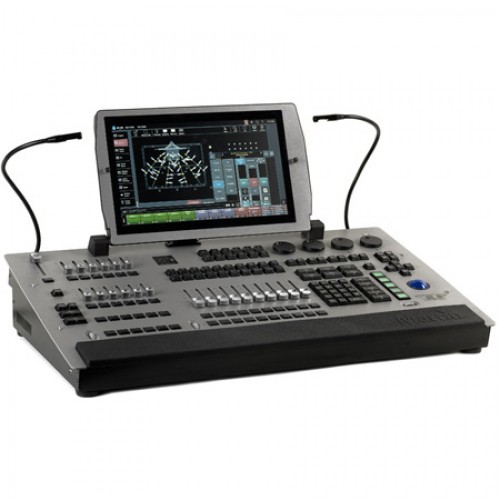

Elation M1HD01 M-Series M1 HD All-In-One Lighting Console Solution
- Brands Elation
- Product Code:ELAT-M1HD01
- Availability:In Stock
-
$14,500.00
M1 HD continues the tradition of the M1, being one of the most ergonomic lighting consoles on the market. With the full power of a larger desk and the agility of a smaller one, the M1 HD is a state-of-the-art, all-in-one lighting desk
Features:
- Protocol: DMX512A (RDM), Art-Net2, sACN
- 4 physical DMX ports
- 40 DMX universes
- Integrated processing, 20480 parameters
- No limit to number of DMX channels per fixture
- Extensive fixture library for all known manufacturers
- 65000 presets for each group of functions (P/T, color, gobo, etc.) Effect generator for automated programming of complex effects Relative or absolute programming
- Fan function for all channels (including timing parameters)
- On-the-fly global timing changes
- Virtual cuelists
- Macros
- Wait, follow and link cues
- HTP, LTP, chase, timecode, submaster and group master playback functionality
- Individual parameter timings
- Intuitive patch feature
- Fixture type cloning
- All channels with 16-bit resolution
Specifications:
- 4 x DMX universe outputs: 5-pin locking XLR
- 1 x DMX in: 5-pin locking XLR
- External displays: 2x DisplayPort (1920x1080 pixels)
- Art-Net / sACN for up to 40 DMX universes in total: RJ-45 Ethercon
- MaxNet controller link: RJ-45 Ethercon
- 2 x M-Series Module interfaces: RJ-45 Ethercon
- MIDI in/out/thru (MIDI show control, MIDI notes, MIDI timecode): 5-pin DIN
- SMPTE In/Out: 3-pin locking XLR
- AC power input: Neutrik PowerCon TRUE1
Item Includes:
- Dust Cover
- Two LED Desklights, built-in
- USB Flash Recovery Drive
- One-Key™ with ShowDesigner 6 Lite™ one-year license and M-PC 64 universes license
Warranty:
- 2 year
