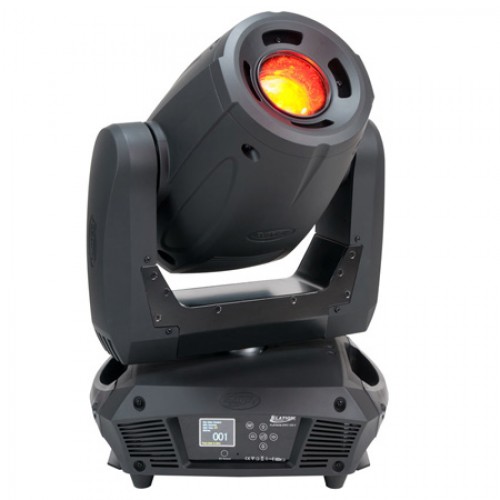

Elation Professional EPS059 Platinum Spot LED II 135W LED Spot
- Brands Elation
- Product Code:ELAT-EPS059
- Availability:In Stock
-
$2,100.00
The Platinum Spot LED II features a 135W Cool White LED engine, 17° beam, 8 dichroic colors plus white, 7 rotating, interchangeable, glass and 7 static metal gobos, frost filter hybrid wash effect, 3-facet rotating prism with 16 prism macros, motorized iris, focus, and dimming, high speed mechanical shutter and strobe, hibernation mode, 3 and 5pin DMX in/out connections, RDM (Remote Device Management), full color 180° reversible menu display with 6 button touch control panel, battery backup for display power, a multi-voltage universal auto switching power supply (100-240v), and flicker free operation for TV and FILM.
Features:
- Cool White 17° Beam LED Spot Illuminare
- Low Heat, Quiet Operation, and Hibernation Mode
- Frost Filter Hybrid Wash + Infinity Prism Effects
- Flicker Free Operation For Broadcast TV and FILM
Specifications:
- SOURCE
- 135W Cool White LED Engine
- 60,000 Hour Average LED Life
- PHOTOMETRIC DATA
- 6,500K, >85CRI
- 11,220 LUX 1,042 FC @8.2’ (2.5m) (17° Full ON)
- EFFECTS
- Frost Filter Hybrid Wash Effect
- 3-Facet + Infinity Rotating Prisms and Macros
- Motorized Focus
- Iris: 5% 100%
- Strobe: 1-18fps
- Dimming 0% 100%
- COLOR/GOBOS
- 8 Dichroic Colors + White (Open)
- 7 Interchangeable / Rotating / Indexing Glass Gobos
- Gobo Size: OD 1.06” (27mm) / ID 0.86” (22mm)
- 7 Static / Indexing Metal Gobos
- CONTROL / CONNECTIONS
- (3) DMX Channel Modes (16 / 14 / 22)
- RDM (Remote Device Management)
- 6 Button Touch Control Panel
- Full Color 180° Reversible LCD Menu Display
- 8 / 16 Bit Resolution Adjustable Movement
- 3pin & 5pin DMX In/Out
- SIZE / WEIGHT
- Length: 14.1” (357mm)
- Width: 13.2” (335mm)
- Vertical Height: 20.7” (526mm)
- Weight: 35.3 lbs. (16 kg)
- ELECTRICAL / THERMAL
- AC 100-240V 50/60Hz
- 230W Max Power Consumption
- -13°F to 113°F (-25°C to 45°C)
- APPROVALS / RATINGS
- CE Approved
- cETLus Approved
- RoHs Compliant
- IP20 Rated
- INSTALLATION
- Rigging: Clamps (Not Included)
- Working Position: Flat Surface / Inverted (180°)
- INCLUDED ITEMS
- Omega Brackets
- 3pin DMX Cable
- Safety Cable
- powerCON Cable
Warranty:
- 2 Years
