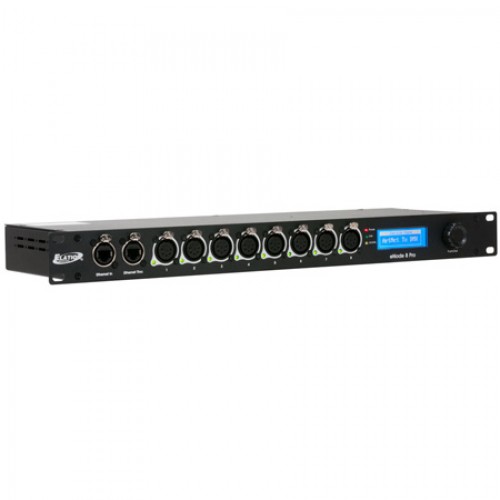

Elation Professional ENO417 eNode8 Pro Art-Net To DMX 8 Universal Converter
- Brands Elation
- Product Code:ELAT-ENO417
- Availability:In Stock
-
$1,060.00
The new eNODE8 PRO features (8) universal DMX ports, (2) RJ45 TCP/IP 10/100M Ethernet ports, auto MDI/MDIX, DMX-512, and ArtNet support, ArtNet-DMX bilateral signal conversion, a DMX splitter function (1 input / 3 outputs or 1A Input / 3A Outputs and 1B Input / 3B Outputs), and broadcast and backup modes.
Features:
- (8) Universal DMX Ports (can be set as Input or Output)
- (2) RJ45 TCP/IP 10/100M Ethernet Connections
- Rotary Menu Wheel / Function Selection Button
- LCD Menu / Function Display
- PowerCON Power In
- Auto MDI/MDIX, DMX-512, and ArtNet Support
- ArtNet DMX Bilateral Signal Conversion
- DMX Splitter Function (1Input / 3 Outputs or 1A Input / 3A Outputs and 1B Input / 3B Outputs)
- LCD Display & LED Indicators
- Broadcast Mode (One Device Transmits Same Signal to Other Connected Devices)
- Backup Mode
Specifications:
- CONTROL / CONNECTIONS
- (8) 5pin DMX Ports
- (2) RJ45 TCP/IP 10/100M Ethernet Connections
- Rotary Menu Wheel / Function Selection Button
- LCD Menu / Function Display
- PowerCON Power In
- SIZE / WEIGHT
- Length: 19.0” (482mm)
- Width: 6.3” (160mm)
- Vertical Height: 1.7” (44mm)
- Weight: 4.6 lbs. (2.1kg)
- ELECTRICAL / THERMAL
- AC 100-240V 50/60Hz
- 7W Max Power Consumption
- 35.6°F (2°C) to 113°F (45°C)
- APPROVALS / RATINGS
- CE, cETLus, IP20
- INSTALLATION
- Any Flat Surface Or Standard 19” (482mm) Rack Mount
Warranty:
- 2 Years
