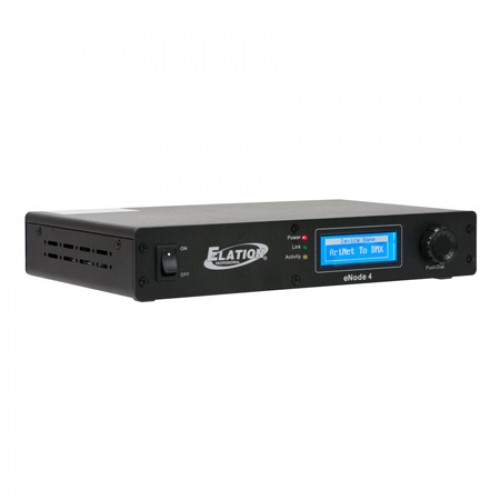

Elation Professional ENO406 Enode 4 Art-Net Do DMX 4 Universe
- Brands Elation
- Product Code:ELAT-ENO406
- Availability:In Stock
-
$640.00
The new eNODE4 features (4) universal DMX ports, (2) RJ45 TCP/IP 10/100M Ethernet ports, auto MDI/MDIX, DMX-512, and ArtNet support, ArtNet-DMX bilateral signal conversion,a DMX splitter function (1 input / 3 outputs), and broadcast and backup modes.
Features:
- (4) Universal DMX Ports (can be set as Input or Output)
- (2) RJ45 TCP/IP 10/100M Ethernet Connections
- Rotary Menu Wheel / Function Selection Button
- LCD Menu / Function Display
- PowerCON Power In
- Auto MDI/MDIX, DMX-512, and ArtNet Support
- ArtNet DMX Bilateral Signal Conversion
- DMX Splitter Function (1Input / 3 Outputs)
- LCD Display & LED Indicators
- Broadcast Mode (One Device Transmits Same Signal to Other Connected Devices)
- Backup Mode
Specifications:
- CONTROL / CONNECTIONS
- (4) 5pin DMX Ports
- (2) RJ45 TCP/IP 10/100M Ethernet Connections
- Rotary Menu Wheel / Function Selection Button
- LCD Menu / Function Display
- PowerCON Power In
- SIZE / WEIGHT
- Length: 10.0” (255mm)
- Width: 6.8” (173mm)
- Vertical Height: 1.7” (43mm)
- Weight: 3.5 lbs. (1.6kg)
- ELECTRICAL / THERMAL
- AC 100-240V 50/60Hz
- 5W Max Power Consumption
- 35.6°F (2°C) to 113°F (45°C)
- APPROVALS / RATINGS
- CE, cETLus, IP20
- INSTALLATION
- Any Flat Surface Or On A Truss With Included Bracket
Warranty:
- 2 Years
