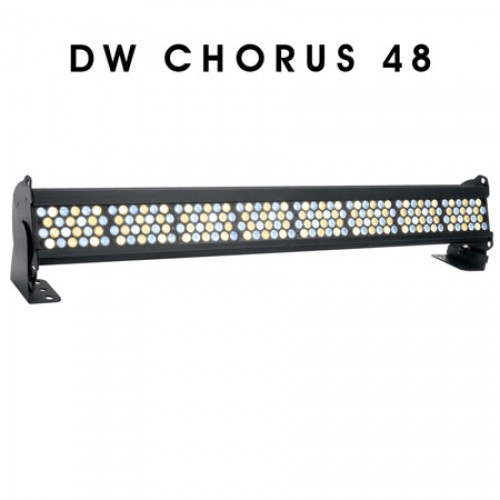

Elation Professional DWC048 DW Chorus 48 LED Light Bar 4-Foot WW/CW Batten

The new DW Chorus series is available in 1 (0.3m), 2 (0.6m), 4 (1.2m), and 6 foot (1.8m) fixture lengths, featuring long life individual Lumi 3W LEDs, 100,000 average hour LED life*, LED group control, variable dimming curve modes, strobe and chase effects, ArtNet, KlingNet and RDM (remote device management) protocol support, 3pin and 5pin DMX, powerCon, and RJ45 in/out connections, LCD menu display with 4 button control panel, integrated rigging brackets, multiple unit power linking, rugged die-cast aluminum exterior, flicker free operation for TV and FILM, and a multi-voltage universal auto switching power supply (110-240v).

Features:

• ArtNet / Klingnet / RDM Protocol Support
• Variable Dimming Curve Modes
• Multiple Unit Power Linking
• Rugged Die-Cast Aluminum Exterior
• Flicker Free Operation for TV and FILM

Specifications:

• SOURCE / PHOTOMETRIC DATA
• Individual 3W Cool White / Warm White Lumi LEDs
• 100,000 Hour Average LED Life*
• *LED Life may vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
• DW Chrous 12 (48) Total LEDs 24 CW + 24 WW
• 30,340 LUX (2,819 FC) @3.3’ (1m) (11° FULL ON)
• DW Chorus 24 (96) Total LEDs 48 CW + 48 WW
• 20,570 LUX (1,911 FC) @3.3’ (1m) (9° FULL ON)
• DW Chorus 48 (192) Total LEDs 96 CW + 96 WW
• 32,644 LUX (3,033 FC) @3.3’ (1m) (14° FULL ON)
• DW Chorus72 (288) Total LEDs 144 CW + 144 WW
• 37,500 LUX (3,484 FC) @3.3’ (1m) (11° FULL ON)


• EFFECTS
• Strobe and Chase Effects / Variable Dimming Curves


• CONTROL / CONNECTIONS
• Multiple DMX Channel Modes
• 4 Button Control Panel and LCD Menu Display
• ArtNet/ KlingNET / RDM Protocol Support
• (2) RJ45 Ports, 3pin and 5pin DMX In/Out
• powerCON Power In/Out
• Multiple Unit Power Linking


• SIZE / WEIGHT
• DW Chorus 48
• Length: 46.5” (1182mm)
• Width: 7.5” (194.1mm)
• Vertical Height: 7.6” (192.5mm)
• Weight: 37.0 lbs. (16.8kg)


• ELECTRICAL / THERMAL
• AC 110-250V 50/60Hz
• DW Chorus 48 347W Max Power Consumption
• 5°F to 113°F (-15°C to 45°C)


• APPROVALS / RATINGS
• CE, cETLus, IP30


• INSTALLATION
• Rigging: Integrated Rigging Brackets
• Working Position: Any (360°)


• INCLUDED ITEMS
• powerCON Cable


• OPTIONAL ACCESSORIES
• LSF601
• 60 x 1° 72" (1829mm) x 3.5" (89mm) Light Shaping Filter

Warranty:

• 2 Years
