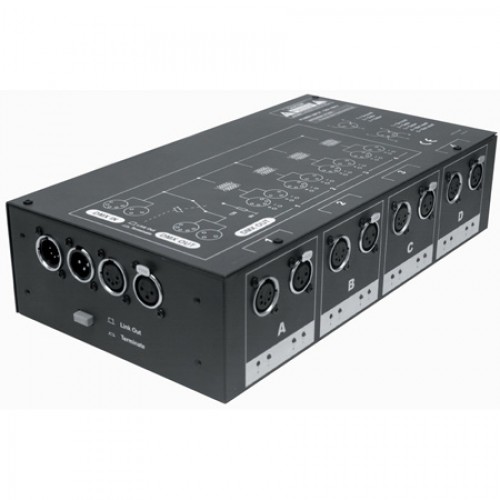

Elation Professional DMX-BRANCH/4 4-Way DMX Distributor

The DMX-Branch/4 is one of the finest pieces of its kind on the market today! The DMX-Branch/4 is a great inexpensive, DMX signal splitter. Typically a DMX signal should not be split but, the DMX-Branch/4™ allows you to split a DMX signal into four separate signal outputs. This unit will also boost your DMX signal for extensive cable runs that are usually associated with permanent installations. This unit is perfect for contractors, installers, and professional light companies. This units is ready to be installed or hung and powered right out of the box. There is no assembly required. The DMXBranch/4™ comes with a sets of rack mount ears and a set of rear hanging ears. Use these ears to mount your unit in a rack or to support it on truss or in a ceiling. The DMX-Branch/4™ is DMX signal splitter/booster combination. This unit not only allows you split the signal but also boost the signal output. The DMX-Branch/4™ can also be linked for extremely large installation. This unit comes standard with 3-pin male and female XLR connectors.

Features:

• 4-way DMX distributor, 1 x DMX Input, 4 x DMX outputs & 1 DMX thru
• Electronic & Opto isolated
• 3 & 5 pin XLR DMX connectors
• Data + & Data – LED indicators
• Linkable with other DMX Branch x 4 units via 3 or 5 pin XLR.
• Link out/Terminate button
• 50mA internal fuse
• 3/16” Threaded hole for clamp
• Dimensions: 13” x 7.25” x 3” (330 x 184 x 76 mm)
• Weight: 7 lbs (3.18 kgs)
• Voltage: 120V
• Internal Fuse: .5A 250V 5x20mm

Specifications:

• Power: 110V/60Hz
• Fuse: 5 x 100mA GMA (Internal)
• Working Position: Any
• Weight: 6.5 Lbs.
• Size: 13” x 3 1/8” x 7 1/8”
• Duty Cycle: None

Warranty:

• 2 Years
