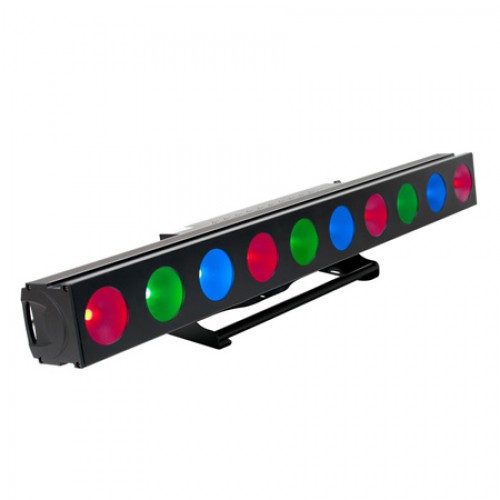

Elation Professional CUE301 Cuepix Batten 10 X 30W COB Batten
- Brands Elation
- Product Code:ELAT-CUE301
- Availability:In Stock
-
$950.00
The new CUEPIX Batten features (10) long life 30W 3-in-1 RGB COB LEDs, 100,000 average hour LED life, 82° beam and 106° field angles, individual control of each COB module, variable dimming curve modes, strobe and chase effects, ArtNet, KlingNet and RDM (remote device management) protocol support, 3pin and 5pin DMX, powerCon, and RJ45 in/out connections, LCD menu display with 4 button control panel, integrated rigging bracket, multiple unit power linking, rugged die-cast aluminum exterior, flicker free operation for TV and FILM, 312W max power consumption, and a multi-voltage universal auto switching power supply (110-240v).
Features:
- 82° Beam 106° Field Angles
- ArtNet and Klingnet Support
- RDM Remote Device Management
- Individual COB Module Control
- Variable Dimming Curve Modes
- Multiple Unit Power Linking
- Rugged Die-Cast Aluminum Exterior
- Flicker Free Operation for TV and FILM
Specifications:
- SOURCE
- (10) 30W 3-in-1 COB LEDs
- 100,000 Hour Average LED Life
- PHOTOMETRIC DATA
- 3,890 LUX 361 FC @3.3’ (1m) (82° Full ON)
- 1,237 LUX 115 FC @6.6’ (2m) (82° Full ON)
- 613 LUX 57 FC @9.8’ (3m) (82° Full ON)
- 345 LUX 32 FC @13.1’ (4m) (82° Full ON)
- 227 LUX 21 FC @16.4’ (5m) (82° Full ON)
- EFFECTS
- Strobe and Chase Effects
- Individual COB Module Control
- Variable and Selectable Dimming Curves
- CONTROL / CONNECTIONS
- 8 DMX Channel Modes (3 / 4 / 6 / 9 / 30 / 33 / 36 / 60)
- 4 Button Control Panel and LCD Menu Display
- ArtNet + KlingNet Protocol Support
- RDM (Remote Device Management)
- (2) RJ45 Ports
- 3pin and 5pin DMX In/Out
- powerCON Power In/Out
- SIZE / WEIGHT
- Length: 43.3” (1100mm)
- Width: 6.4” (121mm)
- Vertical Height: 6.8” (172mm)
- Weight: 21.0 lbs. (9.5 kg)
- ELECTRICAL / THERMAL
- AC 110-250V 50/60Hz
- 312W Max Power Consumption
- Power Link Up To (5) Units at 120V (10) Units at 240V
- 5°F to 113°F (-15°C to 45°C)
- APPROVALS / RATINGS
- CE, IP20
- INSTALLATION
- Rigging: Integrated Rigging Bracket
- Working Position: Any (360°)
Warranty:
- 2 Years
