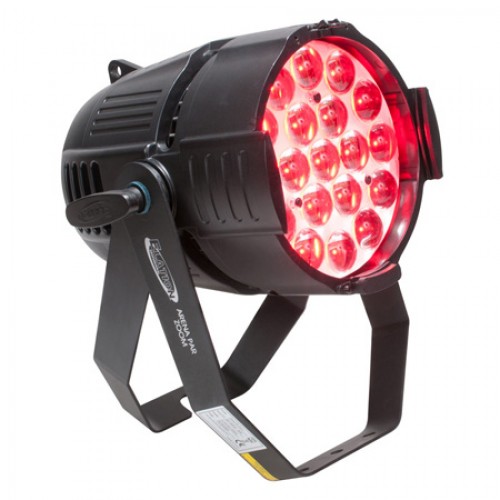

Elation Professional ARE801 Arena Par Zoom 220 Watt High Power LED

The new Arena Par Zoom features (19) 10W QUAD Color LEDs from Osram, 10° to 60° motorized zoom, electronic dimming and variable dimming curves, selectable color temperatures (3,200K 7,200K), flicker free operation for TV and FILM, 3 and 5pin in/out DMX and powerCON in/out connections, 4 button touch control panel, integrated dual rigging yoke / floor stand, linkable power for up to 4 units at 120V and up to 8 units at 230V, 220W max power consumption, and a multi-voltage universal auto switching power supply (100-240v).

Founded in Los Angeles by veterans of the lighting industry, Elation entered the professional lighting market in 2002. In the ensuing years, the company has been in the forefront of developing innovations that have set new standards for Network TV News sets, Motion Pictures, Live Theater, Concerts, Award Shows and so much more. One of their many accomplishments is the development of TriColor LED technology, which creates superior colors with no color shadows, the new Platinum Automated lighting fixture series that introduces a new level of compact power and speed to moving head fixtures and the EPV Series LED video panels, which mark a milestone in the convergence of video and lighting technologies.

Features:

• 1000-Watt Comparable Lumens Output
• Motorized 10° 60° Zoom
• Variable Dimming Curves
• Selectable Color Temperatures (3,200K 7,200K)
• Flicker Free Operation for TV and FILM

Specifications:

• SOURCE
• 19x 10W Osram QUAD Color (RGBW) LEDs
• 50,000 Hour Average Life
• PHOTOMETRIC DATA
• 12,600 LUX @3M 10° Min Zoom
• 900 LUX @3M 60° Max Zoom


• Effects
• Strobe + Variable Strobe Macros
• Electronic Dimming and Variable Dimming Curves
• COLOR
• RGBW


• Control / Connections
• 7 DMX Channel Modes (5 / 6 / 7 / 9 / 10 / 15 / 16)
• 3pin & 5pin DMX In/Out
• 4 Button Control Panel
• LCD Menu Display
• powerCON Power In/Out
• Power Link Up To (4) Units at 120V (8) Units at 230V


• Size/Weight
• Length: 12.8” (324mm)
• Width: 10.9” (276mm)
• Vertical Height: 14.5” (368mm)
• Weight: 15.9 lbs. (7.2kg)


• Electrical / Thermal
• AC 100-240V 50/60Hz
• 220W Max Power Consumption
• -4°F (-20°C) to 104°F (40°C)
• Approvals: CE, cETLus, IP20


• Included Accessories
• (1) Power Cable
• OPTIONAL ACCESSORIES
• BD-08 Barn Door

Item Includes:

• (1) Power Cable

Warranty:

• 2 Years
