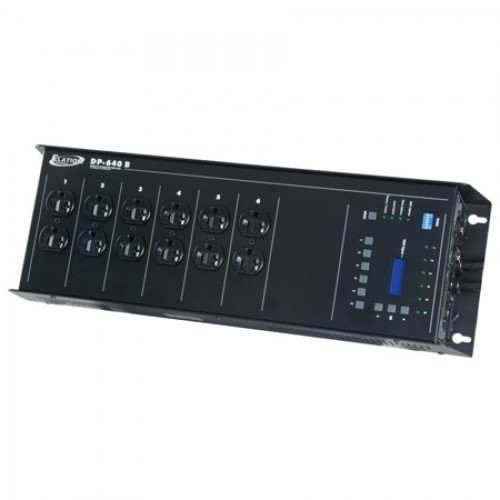

Elation DP-640B 6 Channel Hybrid DMX Pack
- Brands Elation
- Product Code:ELAT-DP-640B
- Availability:In Stock
-
$600.00
This is a 6 channel portable dimmer/pack. Each channel can individually be set to dim or switch as well as accept separate DMX Addresses. For your convenience, each channel can manually be controlled via our simple to use, digital display and function buttons. The Panic function allows you to select desired channels to switch ON constantly via the six dip switch settings. The unit is also supplied with 3 & 5 pin XLR connectors. The aluminum case makes the DP-640B one the lightest portable dimmers of its kind.
Features:
- 6 channel hybrid pack with dual 20A Edison sockets per channel.
- Each channel can be assigned to Dim or Switch modes.
- 4 function LEDs for DMX Address, Patch Address, Local Control, and Dim/Switch modes.
- On board Local Control allows for dim intensity adjustment, from 0-100%, for each channel.
- Dual 20A/AC120V Power line cords.
- Digital LED-display
- Two 20 Amp circuit breakers
- Panic function dip switches
- 3 & 5 pin XLR inputs and outputs
Specifications:
- CONTROL / CONNECTIONS
- Digital LED Control Menu Display
- On Board Local Control For Dimming Intensity Adjustment (0-100%)
- Panic Function ON/OFF DIP Switches
- (2) 20 AMP / 120VAC Rated Line Cords
- 3pin & 5pin DMX Input and Output Connections
SIZE / WEIGHT - Length: 19.7" (500mm)
- Width: 6.6" (167mm)
- Vertical Height: 3.7" (93mm)
- Weight: 7.5 lbs. (3.4kg)
ELECTRICAL / THERMAL - Power Input:2x20A AC 120V - 50/60Hz
- Line Cord: 2x12AGWx3C
- Load: 2400W Max Power Consumption Per Circuit
- (2,400W Channels 1-3 and 2,400W Channels 4-6)
