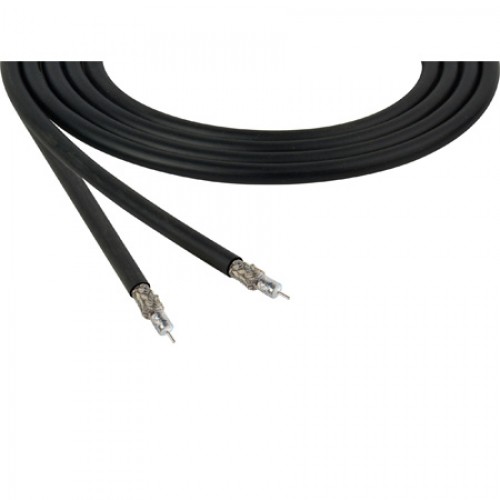

Belden 4794R 12 GHz 4K UHD 75 Ohm 16 AWG Precision Video Cable Black 2500 Feet

Belden's newest addition to their regal line of coax cable is a miracle to behold! The Belden 4794R is rated for 12 GHz 4K UHD 75 Ohm 16 AWG Precision Video Cable Coax transmission. 75 Ohm 16 AWG solid 0.051" silver-plated copper conductor, gas-injected foamed high-density polyethylene insulation, Duofoil bonded to the core + tinned copper braid shield (95% coverage) plus Beldfoil with shorting fold, PVC jacket construction.

What all this means is that you can now reach distances of up to 300 feet with a UHD 4K signal. That is a miracle to behold. The awe-inspiring images of 4K now can be transmitted in just about any environment, Classrooms, Houses Of Worship, Broadcast Vans/Trucks. ENG camera crews. and especially the Home Theater enthusiasts.

True 4K UHD right in your livingroom, schoolroom or boardroom. Wherever you need crisp, crystal clear Ultra High Definition detail the Belden 4794R cable will deliver.

Specifications:

• Conductor
• AWG: # Coax AWG Stranding Conductor Material Dia. (in.) 1 16 Solid SPC - Silver Plated Copper 0.051
• Total Number of Conductors: 1

  Insulation
• Insulation Material: Gas-injected FHDPE - Foam High Density Polyethylene
• Dia. (in.) 0.225

  Outer Shield
• Outer Shield Material:
• 1. Bonded Duofoil, Tape, Aluminum Foil-Polyester Tape-Aluminum Foil, 100.000 % Coverage
• 2 Braid TC - Tinned Copper 95 % Coverage
• 3. Bonded Beldfoil with shorting fold, Tape, Polyester Tape-Aluminum Foil 100 % Coverage, Bonded to jacket

  Outer Jacket
• Outer Jacket Material: PVC - Polyvinyl Chloride

  Overall Cable
• Overall Nominal Diameter: 0.320 in.
• Mechanical Characteristics (Overall)
• Operating Temperature Range: -30°C To +75°C
• Bulk Cable Weight: 59 lbs/1000 ft.
• Max. Recommended Pulling Tension: 111 lbs.
• Min. Bend Radius/Minor Axis: 3.250 in.

  Applicable Specifications and Agency Compliance (Overall)
• Applicable Standards & Environmental Programs
• NEC/(UL) Specification: CMR
• CEC/C(UL) Specification: CMG
• EU Directive 2011/65/EU (ROHS II): Yes
• EU CE Mark: Yes
• EU Directive 2000/53/EC (ELV): Yes
• EU Directive 2002/95/EC (RoHS): Yes
• EU RoHS Compliance Date (mm/dd/yyyy): 01/01/2004
• EU Directive 2002/96/EC (WEEE): Yes
• EU Directive 2003/11/EC (BFR): Yes
• CA Prop 65 (CJ for Wire & Cable): Yes
• MII Order #39 (China RoHS): Yes
• Series Type: Series 7
