Belden 4855R 12G-SDI 75 Ohm 4K UHD Mini Coax Video Cable - Black - 5000 Foot
- Brands Belden
- Product Code:BL-4855R-5000BK
- Availability:In Stock
-
$4,550.00

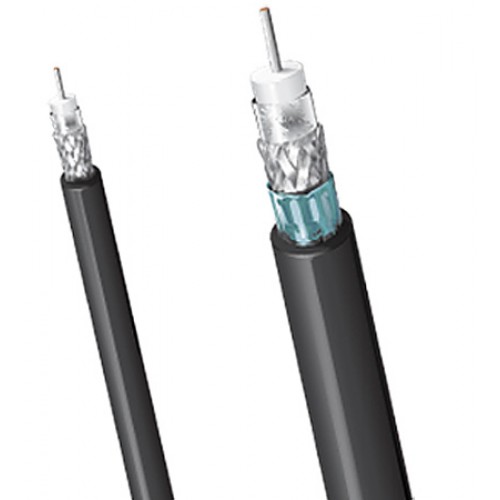

Sub-Miniature Coax 12 GHz, 4K UHD Precision Video Cable. 75 Ohm, 23 AWG solid .023" silver plated copper conductor, gas-injected foam HDPE insulation, Duofoil bonded to the core + tinned copper braid shield (95% coverage), PVC jacket
Specifications:
- AWG: 1 Coax, 23 AWG Solid stranding silver plated copper (0.584 mm Diameter)
- Insulation Material: Gas-injected FHDPE - Foam High Density Polyethylene (2.5908 mm Diameter)
- Outer Shield Material: Bonded duofoil Alluminum foil-polyester Tape-Aluminum Foil, Braided Tinned Copper
- Outer Jacket Material: PVC - Polyvinyl Chloride
- Overall Nominal Diameter: 4.039 mm
- Operating Temperature Range: -30°C To +75°C
- Bulk Cable Weight: 25.299 Kg/Km
- Max. Recommended Pulling Tension: 177.928 N
- Min. Bend Radius/Minor Axis: 40.640 mm
- NEC/(UL) Specification: CMR
- CEC/C(UL) Specification: CMG
- EU Directive 2011/65/EU (ROHS II): Yes
- EU CE Mark: Yes
- EU Directive 2000/53/EC (ELV): Yes
- EU Directive 2002/95/EC (RoHS): Yes
- EU RoHS Compliance Date (mm/dd/yyyy): 11/08/2016
- EU Directive 2002/96/EC (WEEE): Yes
- EU Directive 2003/11/EC (BFR): Yes
- CA Prop 65 (CJ for Wire & Cable): Yes
- MII Order #39 (China RoHS): Yes
- RG Type: Sub-miniature 59/U
- UL Flame Test: UL1666 Vertical Shaft
- CSA Flame Test: FT4
- Suitability - Indoor: Yes
- Suitability - Outdoor: Yes - Black only.
- Suitability - Aerial: Yes - Black only, when supported by messenger wire.
- Suitability - Burial: No
- Plenum (Y/N): No
- Nom. Characteristic Impedance (Ohm): 75
- Nom. Inductance (µH/m): 0.351067
- Nom. Capacitance Conductor to Shield (pF/m): 53.4803
- Nominal Velocity of Propagation VP (%): 82
- Nominal Delay: (ns/m): 4.068
- Nom. Conductor DC Resistance DCR @ 20°C: 64.636 Ohm/km
- Nominal Outer Shield DC Resistance DCR @ 20°C: 12.796 Ohm/km
