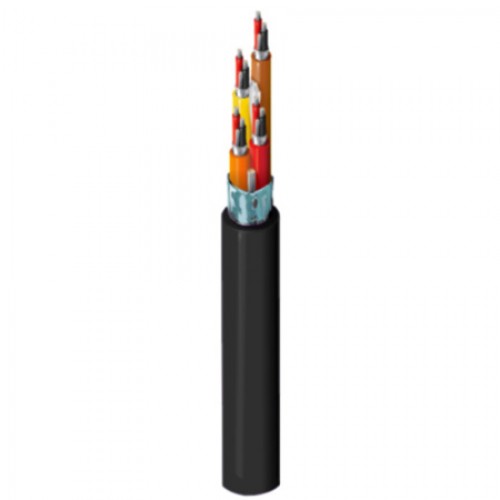

Belden 1805F 8pr AES/EBU Digital Audio Snake Cable - 500 Foot Roll
- Brands Belden
- Product Code:BL-1805F-500
- Availability:In Stock
-
$3,033.70
Belden 1805F is a Digital Audio Snake Cable with CMG-Rated, 8-24 AWG tinned copper pairs,Datalene® insulation, individually shielded with Beldfoil, numbered/color-coded PVC jackets, and flexible PVC jacket.
Specifications:
- Conductor Count: 16
- Total Number of Pairs: 8
- Conductor Size: 24 AWG
- Material: Tinned Copper
- Nominal Diameter: 0.024 in
- Stranding: 7x32
- UL Temp Rating: 60°C
- Operating Temp Range: -30°C To +60°C
- Bulk Cable Weight: 195 lbs/1000ft
- Max Recommended Pulling Tension: 137 lbs
- Min Bend Radius/Minor Axis: 6.75 in
- NEC/(UL) Specification: CMG
- CEC/C(UL) Specification: CMG
- CPR Euroclass: Eca
- PMSHA Specification: Yes
-
Other Specification: AES/EBU
Frequency [MHz] Max. Insertion Loss (Attenuation) - 0.384 MHz 0.46 dB/100ft
- 0.7056 MHz 0.67 dB/100ft
- 0.768 MHz 0.7 dB/100ft
- 1.024 MHz 0.84 dB/100ft
- 1.4112 MHz 1.03 dB/100ft
- 1.536 MHz 1.09 dB/100ft
- 2.048 MHz 1.3 dB/100ft
- 2.8224 MHz 1.66 dB/100ft
- 3.072 MHz 1.76 dB/100ft
- 4.096 MHz 2.23 dB/100ft
- 5.6448 MHz 2.9 dB/100ft
- 6.144 MHz 3.07 dB/100ft
- 8.192 MHz 3.71 dB/100ft
- 11.2896 MHz 4.53 dB/100ft
- 12.288 MHz 4.78 dB/100ft
- 24.576 MHz 7.11 dB/100ft
