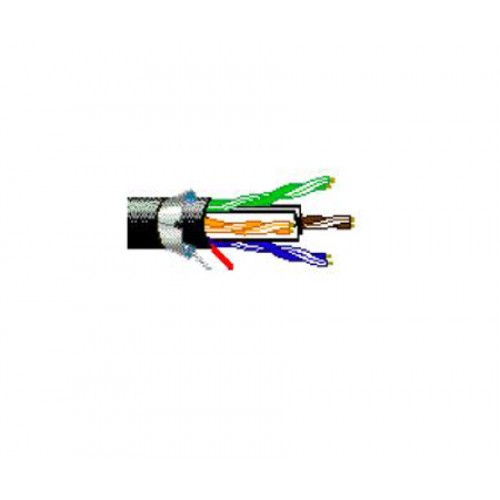

Belden 7953A 4/23 Category 6 DataTuff 600V AWM Rated Cable - Blue - 1000 Foot
- Brands Belden
- Product Code:BL-7953A-1000BE
- Availability:In Stock
-
$1,667.60
Belden 7953A has 23 AWG solid bare copper conductors, bonded pair polypropylene insulation, FRPE spline center member, inner PVC jacket, overall Beldfoilr Shield (100% coverage), industrial grade sunlight and oil resistant DataTuff PVC jacket, sequential footage marking every two feet.Premise Horizontal Cable
Gigabit Ethernet
100BaseTX
100BaseVG ANYLAN
155 ATM, 622 ATM
250MHz Category 6
Suitable Applications:
Specifications:
- AWG: 23
- Stranding: Solid
- Material: Bare Copper
- Number of Pairs: 4
- Conductor Count: 8
- Installation Temp Range: -25°C To +75°C
- UL Temp Rating: 75°C
- Storage Temp Range: -40°C To +80°C
- Operating Temp Range: -40°C To +75°C
- Bulk Cable Weight: 44 lbs/1000ft
- Max Recommended Pulling Tension: 40 lbs
- Min Bend Radius/Minor Axis: 4 in
- NEC/(UL) Specification: CMR, CMX-Outdoor
- CEC/C(UL) Specification: CMG
- UL AWM Style: UL Style 21047
- ISO/IEC Compliance: ISO/IEC 11801 ed 2.1 (2008) Class E
- CPR Euroclass: Eca
- Data Category: Category 6
- Telecommunications Standards: Category 6 - TIA 568.C.2
-
Other Specification: NEMA WC-63.1 Category 6
Frequency [MHz] Max. Insertion Loss (Attenuation) Min. NEXT [dB] - 1 MHz 2 dB/100m 74.3 dB
- 4 MHz 3.8 dB/100m 65.3 dB
- 8 MHz 5.3 dB/100m 60.8 dB
- 10 MHz 6 dB/100m 59.3 dB
- 16 MHz 7.6 dB/100m 56.2 dB
- 20 MHz 8.5 dB/100m 54.8 dB
- 25 MHz 9.5 dB/100m 53.3 dB
- 31.25 MHz 10.7 dB/100m 51.9 dB
- 62.5 MHz 15.4 dB/100m 47.4 dB
- 100 MHz 19.8 dB/100m 44.3 dB
- 155 MHz 25.2 dB/100m 41.5 dB
- 200 MHz 29 dB/100m 39.8 dB
- 250 MHz 32.8 dB/100m 38.3 dB
